SINOTRUK HOWO NX 6×4 DUMP TRUCK
SINOTRUK HOWO NX 6×4 Dump Truck
SINOTRUK HOWO NX 6×4 Dump Truck is a heavy-duty construction and mining transport solution engineered for harsh road conditions and high-load operations. Built on the reinforced HOWO NX chassis, this model features a 6×4 drivetrain and is powered by the reliable WD615.47 371 HP Euro II engine, delivering strong torque and proven durability for infrastructure, quarry, and earthmoving projects.
- Model: ZZ3257V384JB1
- Driving Type: 6×4
- Engine: WD615.47 · 371 HP · Euro II
- Transmission: HW19710 (10F + 2R)
- Front Axle: VGD95 · 9.5 Ton
- Rear Axles: MCX16ZG · 16 Ton × 2 · Heavy Reduction
- Dump Body: 5600 × 2300 × 1500 mm · Middle Lifting
- GVW: 40,000 kg
The reinforced dump body uses Q345 high-strength steel with an 8 mm floor and 6 mm side walls, combined with a middle hydraulic lifting system, ensuring stable unloading, high load capacity, and long service life in demanding construction and mining environments.
SINOTRUK HOWO NX 6×4 Dump Truck – Compact, Strong and Efficient
The SINOTRUK HOWO NX 6×4 Dump Truck is a compact and efficient heavy-duty tipper designed for customers who need strong performance in quarry haulage, construction material transport and road repair projects.
With its 6×4 drive configuration, WD615.47 371HP Euro 2 engine, HW19710 gearbox and middle lifting dump body, this model balances payload capacity, maneuverability and fuel economy—especially on mixed road conditions and tighter job sites.

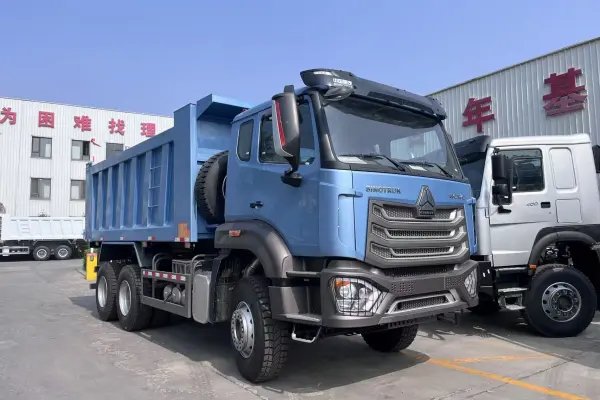

The H77L cab with air-conditioning and sleeper gives your drivers a comfortable working environment during long shifts, while the optimized wheelbase and strong suspension help the truck remain stable under load.
Technical Specifications — SINOTRUK HOWO NX 6×4 Dump Truck
| Basic Information | |
|---|---|
| Model Name | SINOTRUK HOWO NX 6×4 Dump Truck |
| Chassis No. | ZZ3257V384JB1 |
| Drive Type | 6×4 |
| Cab | H77L cab with A/C, one sleeper, LHD, with cabin head |
| Steering | Left-hand drive (LHD) |
| Engine | |
| Engine Model | WD615.47, 371 HP, Euro 2 |
| Maximum Output | 273 kW @ 2200 r/min |
| Maximum Torque | 1500 N·m @ 1100–1600 r/min |
| Construction | In-line 6-cylinder, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Bore × Stroke | 126 × 130 mm |
| Displacement | 9.726 L |
| Transmission & Axles | |
| Transmission | HW19710, 10 forward gears and 2 reverse |
| Front Axle | VGD95, 9.5-ton, drum brake |
| Rear Axles | MCX16ZG, 16-ton double axles, heavy reduction drive axle with leaf spring |
| Wheelbase | 3800 + 1350 mm |
| Tyres & Wheels | |
| Rim / Tyres | 13R22.5, 10 tyres + 1 spare (10 + 1) |
| Dump Body & Lifting System | |
| Dump Body Size | 5600 × 2300 × (1300 + 200) mm |
| Floor Thickness | 8 mm |
| Side Wall Thickness | 6 mm |
| Lifting System | Middle lifting |
| Dimensions & Color | |
| Overall Dimension (L×W×H) | 8600 × 2550 × 3400 mm |
| Color Options | Basic color for free (white, red, blue, orange, gray); special colors with extra charges |
HOWO NX 6×4 Dump Truck Gallery

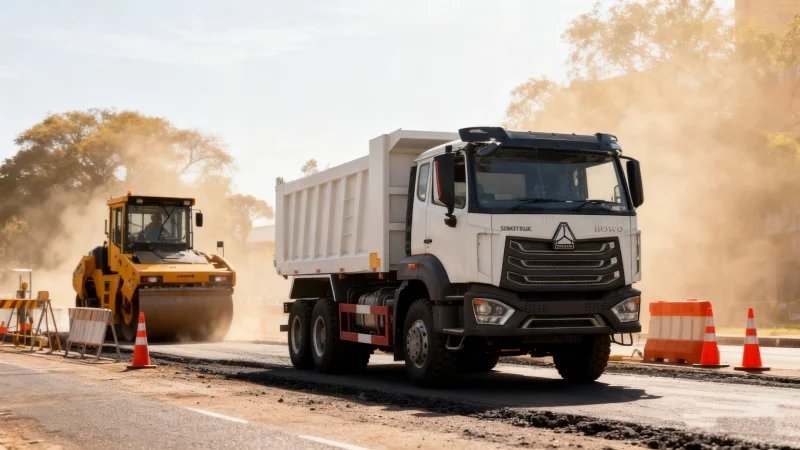

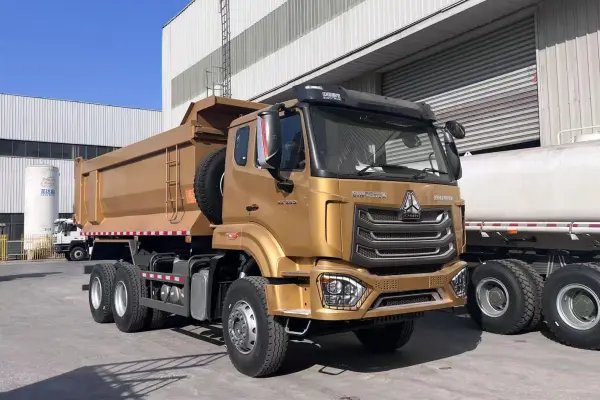

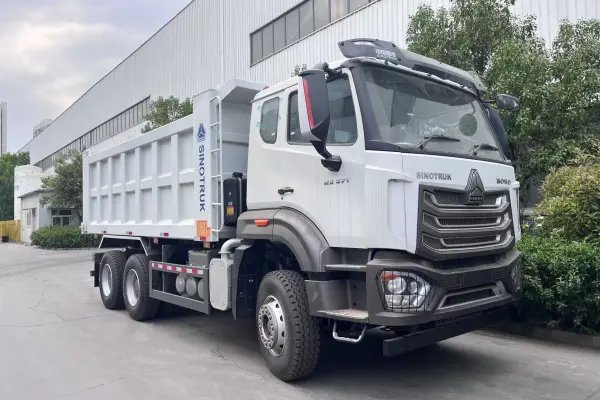

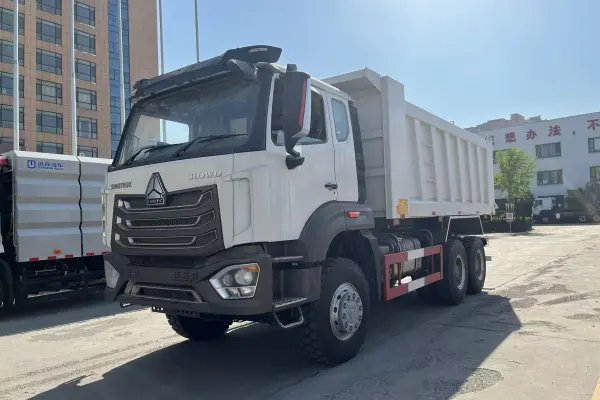

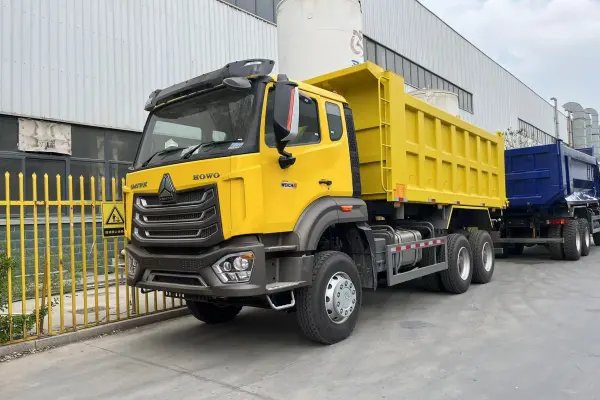

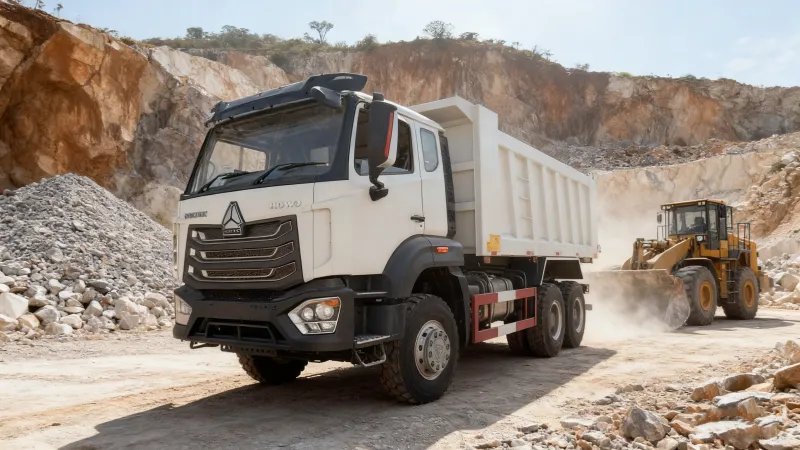

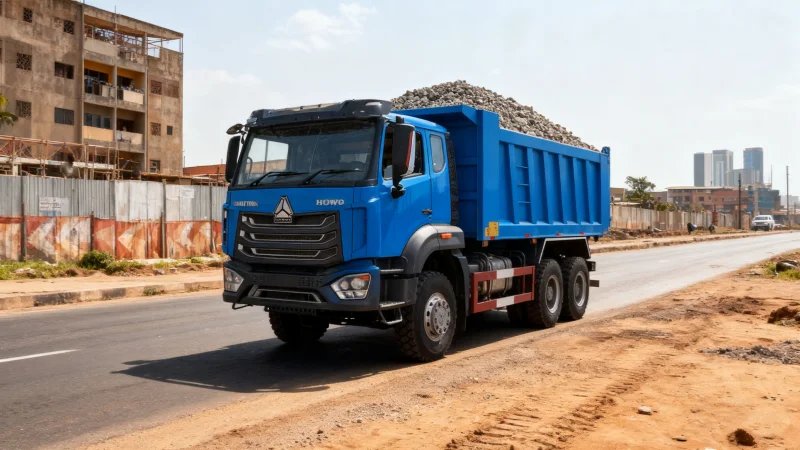

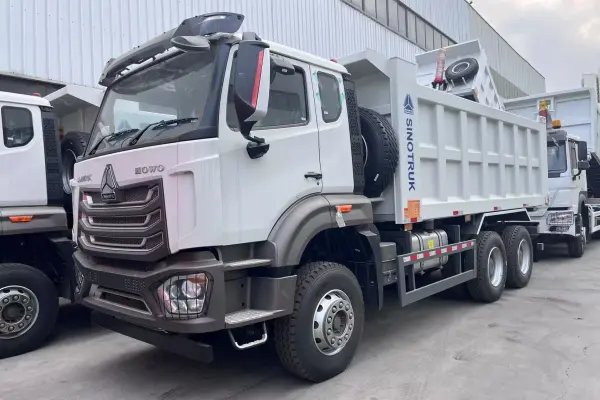

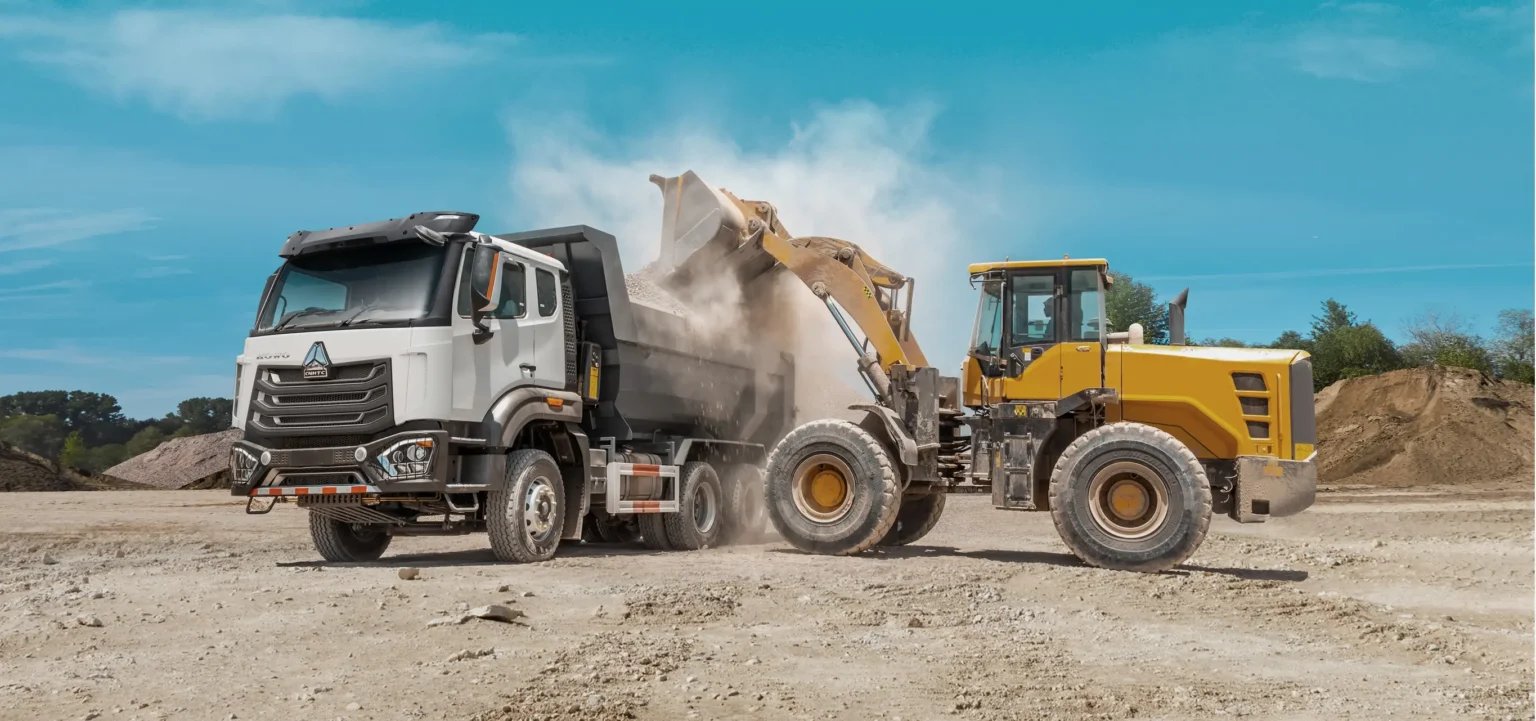

Explore the key exterior views and real working scenes of the SINOTRUK HOWO NX 6×4 dump truck, including white studio shots and African jobsite applications.
Controlled assembly with torque management and welding inspection
Dump body built with strict thickness tolerance (8 mm floor, 6 mm side)
Middle lifting system tested for repeated up/down cycles under load
Each truck passes braking, steering and lifting tests before delivery
factory-prepared export ensures stable configuration, clear documentation and long-term parts supply
FAQ — HOWO NX 6×4 Dump Truck
Q1. What kind of work is the HOWO NX 6×4 dump truck suitable for?
The HOWO NX 6×4 is ideal for short- to medium-distance haulage in quarries, construction sites and road repair projects, especially where turning space is limited compared with 8×4 trucks.
Q2. What engine and transmission does it use?
The truck is equipped with a WD615.47 diesel engine, 371HP, Euro 2, and a HW19710 manual transmission with 10 forward gears and 2 reverse, which is widely used and easy to maintain.
Q3. What is the dump body size and thickness?
The body measures 5600 × 2300 × (1300+200) mm, with 8 mm floor and 6 mm side wall, suitable for sand, gravel and crushed stone under frequent loading and tipping.
Q4. What is the axle configuration and tyre size?
The NX 6×4 uses a VGD95 9.5-ton front axle, MCX16ZG 16-ton heavy reduction rear axles, and 13R22.5 tyres (10 + 1 spare), providing strong support and traction for heavy loads.
Q5. Can the truck color and body details be customized?
Yes. Basic colors (white, red, blue, orange, gray) are available free of charge. Special colors, company logos and additional body options can be supplied with extra charges.
Q6. How do you get a quotation and delivery time?
You can send your required quantity, body specification and destination port, and a complete quotation with lead time and sea freight options will be prepared for you by the factory export team.
