SINOTRUK HOWO TX 6x4 dump truck for construction and mining transport

SINOTRUK HOWO TX 6×4 DUMP TRUCK

Configuration summary

SINOTRUK HOWO TX 6×4 Dump Truck

SINOTRUK HOWO TX 6×4 Dump Truck is a modern heavy-duty dump solution designed for construction, earthmoving, and quarry transport with higher stability and driver comfort. Built on the HOWO TX-F cab and a reliable 6×4 drivetrain, it is powered by the proven WD615.47 371 HP Euro II engine, delivering strong torque, dependable uptime, and cost-effective operation for fleet buyers.

Model: ZZ3257N384GB1
Driving Type: 6×4
Engine: WD615.47 · 371 HP · Euro II
Transmission: HW19710 (10F + 2R)
Front Axle: 9.5 Ton · Drum Brake · EVB · No ABS
Rear Axles: 16 Ton × 2 · Heavy Reduction · Leaf Spring
Tyres: 12.00R24 (10+1 Spare)
Dump Body: 5600 × 2300 × 1500 mm · Front Hydraulic Lifting
Fuel Tank: 400 L
GVW: 31,000 kg

The dump body is built for continuous job-site use with an 8 mm floor and 6 mm side walls. The front hydraulic lifting cylinder system ensures fast, stable unloading—ideal for high-frequency loading cycles on construction and mining sites.

Request the configuration sheet and a quotation for your truck.

SINOTRUK HOWO TX 6×4 Dump Truck — Stronger, Smarter, More Reliable

Factory-direct 40-ton tipper engineered for construction, mining and logistics. TX aerodynamic cab, WD615.47 engines and reinforced frame deliver maximum uptime in hot, dusty and rugged worksites.

HOWO TX 6×4 Dump Truck Specifications

Item	Specification
Chassis Model	ZZ3257N384GB
Cab	TX-F with A/C, single sleeper, RHD (Right-Hand Drive)
Engine	WD615.47, 371 HP, Euro II emission standard
Maximum Output (kW/r/min)	273 / 2200
Maximum Torque (N·m/r/min)	1500 / 1100–1600
Engine Type	6-cylinder in-line, 4-stroke, water-cooled, turbocharged & intercooled, direct injection
Bore × Stroke	126 × 130 mm
Displacement	9.726 L
Transmission	HW19710, 10 forward gears + 2 reverse gears
Front Axle	9.5 Ton, drum brake with EVB, no ABS
Rear Axle	16 Ton double axles, heavy reduction drive axle, leaf spring suspension
Wheelbase	3800 + 1350 mm
Tyre	12.00R24, 10 + 1 spare tyre
Fuel Tank	400 L
Dump Body	5600 × 2300 × 1500 mm; floor 8 mm, side wall 6 mm; front hydraulic lifting cylinder system
Overall Dimension	8600 × 2550 × 3450 mm
Color	Optional – basic colors free, special colors at extra charge

HOWO TX 6×4 Dump Truck Gallery

A curated selection of high-resolution factory display photos showcasing the SINOTRUK HOWO TX 6×4 Dump Truck during assembly, inspection and pre-shipment yard staging. These images highlight the TX cab design, reinforced dump body, hydraulic lifting performance and export-grade build quality.

Chassis close-up of HOWO TX 6×4 Dump Truck inside SINOTRUK workshop.

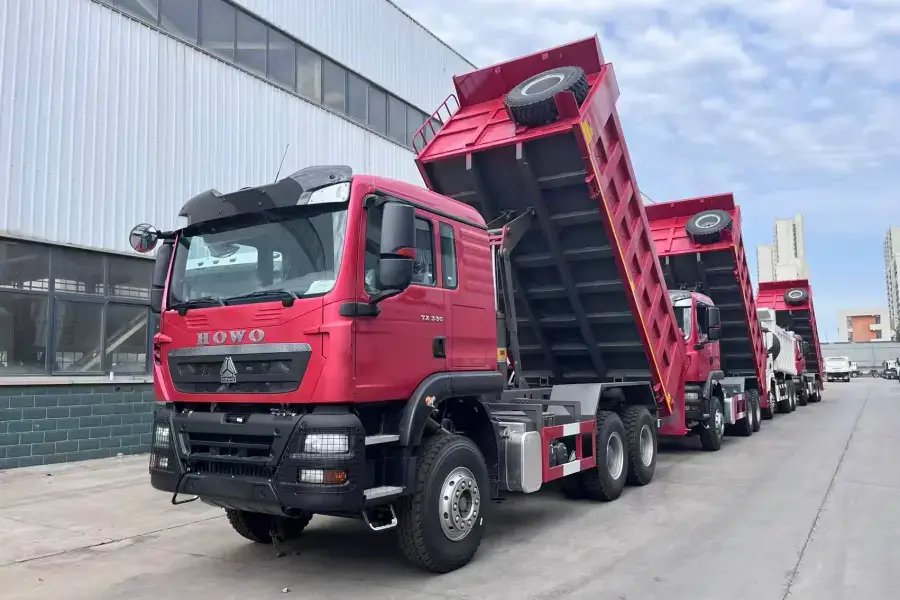

HOWO TX 6x4 tipper truck unloading sand with powerful hydraulics

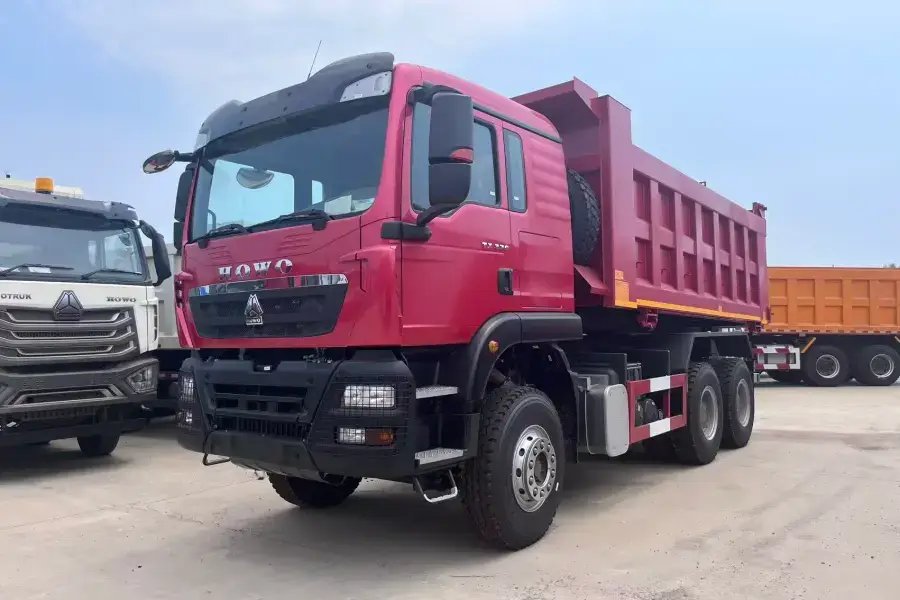

HOWO TX 6x4 dump truck front view showing aerodynamic design

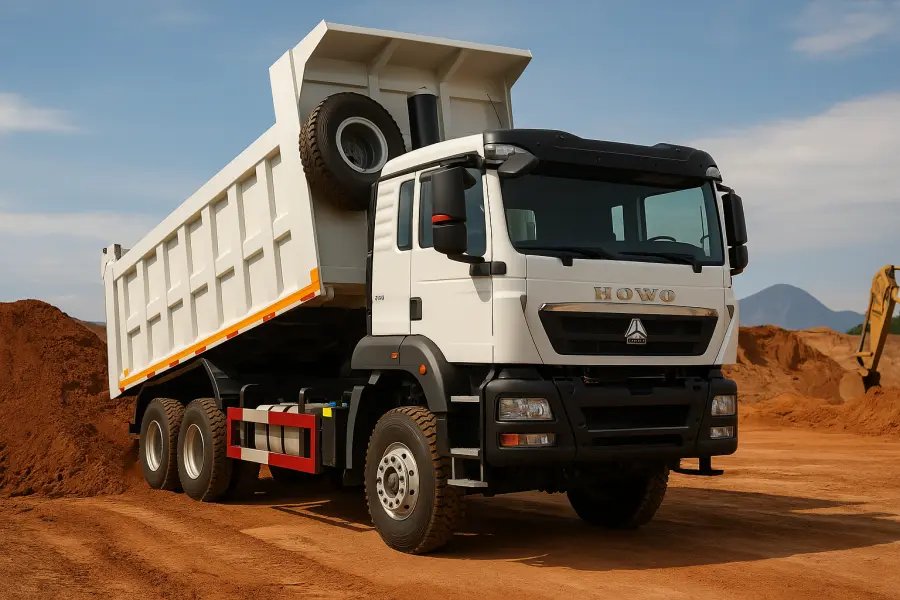

HOWO TX 6×4 Dump Truck – Reliable and efficient for construction and mining projects.

HOWO TX dump truck chassis and hydraulic system details

Factory Strength & Quality Assurance

Assurance & Support

Ruidite Machinery provides a 12-month warranty on the engine, gearbox and rear axle of new and refurbished trucks. Wear parts are excluded; the written sales contract confirms the coverage and exclusions.
Genuine SINOTRUK parts supply (air/sea) and remote technical guidance
Complete export documentation: CI, PL, CO, BL, inspection certificates

Result: Higher uptime, lower lifecycle cost, and confidence to run full loads in hot, dusty, and humid environments—day after day.

Built for harsh climates, verified for uptime.

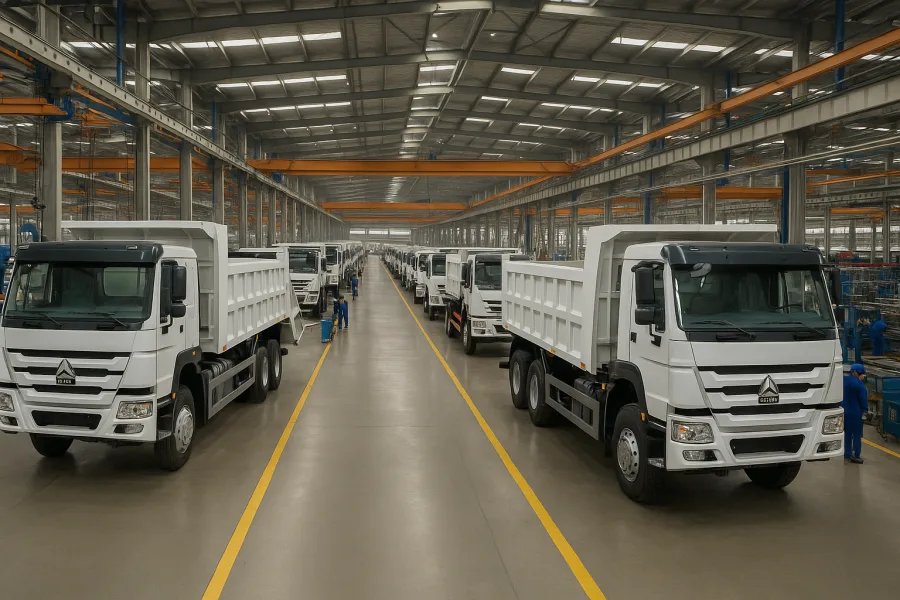

Every HOWO TX 6×4 Dump Truck is assembled on SINOTRUK’s ISO/TS 16949–certified lines in Jinan. From robotic frame welding to cathodic electrophoresis (e-coat) and digital torque programming, each unit is engineered to withstand high heat, dust, and heavy-load cycles common in Africa and the Middle East.

Manufacturing Excellence

Robotic welding + laser cutting for rigid chassis geometry and repeatable quality
E-coat & phosphate treatment on cab and frame for long-term corrosion resistance
Digitally controlled torque & gear calibration to protect drivetrain under peak loads
HC16 hub-reduction axles and reinforced double-layer frame for 40-ton duty

Quality Control Process (8 steps)

Incoming material inspection & traceability tagging
Chassis and cab sub-assembly dimensional checks
Powertrain (WD615 + HW19710/19712) bench calibration
Brake & steering pressure verification
Electrical harness waterproofing & ECU diagnostics
48-hour endurance load test (cooling, braking, gradients)
Final road test (NVH, shifting, braking distance)
Pre-delivery inspection with rust-proofing & export packaging

Severe-Duty Options

Hardox®/Q345 wear plates (10 mm floor / 8 mm sides), quarry-spec tailgate
Tropical-grade filtration, heavy-duty cooling, desert-spec sealing

Customer Cases — HOWO TX 6×4 Dump Truck in Africa

HOWO TX 6×4 dump trucks operating in Ethiopia highland road projects

Ethiopia • Mountain Road Construction Fleet

In the highlands near Addis Ababa, a contractor operates HOWO TX 6×4 dump trucks equipped with WD615.47 engines (371 HP, Euro II) for sand and gravel transport in rural road projects.
The strong low-end torque and reliable cooling system perform exceptionally well on steep slopes and thin mountain air. After six months in service, the fleet achieved 95% uptime and 7% lower fuel usage, outperforming previous local fleets in hill-climbing and braking stability.

HOWO TX 6×4 dump trucks working in a limestone quarry in Nigeria

Nigeria • Limestone Quarry Operation

At a quarry in Ogun State, 12 HOWO TX 6×4 dump trucks powered by WD615.47 engines deliver limestone from blasting zones to crushers over 10 km of unpaved terrain.
Operating under 35–40°C heat, the TX series shows stable cooling performance with zero overheating incidents and consistent fuel economy. Fleet managers reported longer tyre lifespan and less drivetrain wear due to balanced axle load and optimized transmission ratios.

Zimbabwe • Road Rehabilitation Project

In Harare and Bulawayo, the HOWO TX 6×4 dump truck supports national road upgrading programs, transporting asphalt and crushed aggregates.
The WD615.47 engine (371 HP, Euro II) and robust transmission deliver stable power even under heavy load. Operators praised the TX cab’s comfort, visibility and air-conditioning, while engineers noted 98% fleet availability and reduced fuel costs during continuous rainy-season operations.

Across Ethiopia’s highlands, Nigeria’s quarries, and Zimbabwe’s infrastructure sites, the HOWO TX 6×4 dump truck with WD615.47 371HP engine consistently demonstrates outstanding reliability, fuel efficiency, and adaptability to Africa’s toughest conditions — reinforcing SINOTRUK’s reputation as a trusted heavy-duty partner for construction and mining fleets worldwide.

Related Hot-Selling Models

❯ Still have questions? Submit your inquiry on the right to get a factory quotation.

FAQ — HOWO TX 6×4 Dump Truck

Q1. How soon will I receive a quotation?

Availability is confirmed for the required configuration. Custom equipment and preparation time are listed on the quotation.

Q2. What documents will be provided before shipment?

Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin, and Form E (if required).

Q3. How long is the production and shipping time?

The truck is normally ready at a Chinese port 30–45 working days after the deposit. Ocean transit and destination clearance are additional.

Q4. Can you customize the truck body?

Yes. We support Q345 / Hardox® wear-resistant steel, different body sizes, and hydraulic lifting options.

Q5. Which payment methods are accepted?

Telegraphic Transfer (T/T) or Letter of Credit (L/C) through major banks.

Q6. Do you offer after-sales support?

Yes. We provide technical consultation within 12 hours, spare-parts dispatch within 72 hours, and online guidance.

Request Factory Price Factory Price NOW!

Get an official quotation and shipping plan through Ruidite Machinery in Jiaxiang, Jining export team.

SINOTRUK HOWO TX 6×4 Dump Truck

Model: ZZ3257N384GB1

Driving Type: 6×4

Engine: WD615.47 · 371 HP · Euro II

Transmission: HW19710 (10F + 2R)

Front Axle: 9.5 Ton · Drum Brake · EVB · No ABS

Rear Axles: 16 Ton × 2 · Heavy Reduction · Leaf Spring

Tyres: 12.00R24 (10+1 Spare)

Dump Body: 5600 × 2300 × 1500 mm · Front Hydraulic Lifting

Fuel Tank: 400 L

GVW: 31,000 kg

HOWO TX 6×4 Dump Truck Specifications

Item

Specification

Chassis Model

ZZ3257N384GB

Cab

TX-F with A/C, single sleeper, RHD (Right-Hand Drive)

Engine

WD615.47, 371 HP, Euro II emission standard

Maximum Output (kW/r/min)

273 / 2200

Maximum Torque (N·m/r/min)

1500 / 1100–1600

Engine Type

6-cylinder in-line, 4-stroke, water-cooled, turbocharged & intercooled, direct injection

Bore × Stroke

126 × 130 mm

Displacement

9.726 L

Transmission

HW19710, 10 forward gears + 2 reverse gears

Front Axle

9.5 Ton, drum brake with EVB, no ABS

Rear Axle

16 Ton double axles, heavy reduction drive axle, leaf spring suspension

Wheelbase

3800 + 1350 mm

Tyre

12.00R24, 10 + 1 spare tyre

Fuel Tank

400 L

Dump Body

5600 × 2300 × 1500 mm; floor 8 mm, side wall 6 mm; front hydraulic lifting cylinder system

Overall Dimension

8600 × 2550 × 3450 mm

Color

Optional – basic colors free, special colors at extra charge
