SINOTRUK HOWO CNG tractor truck
According to clients’ requirements, we can customize different loading capacity and volume.

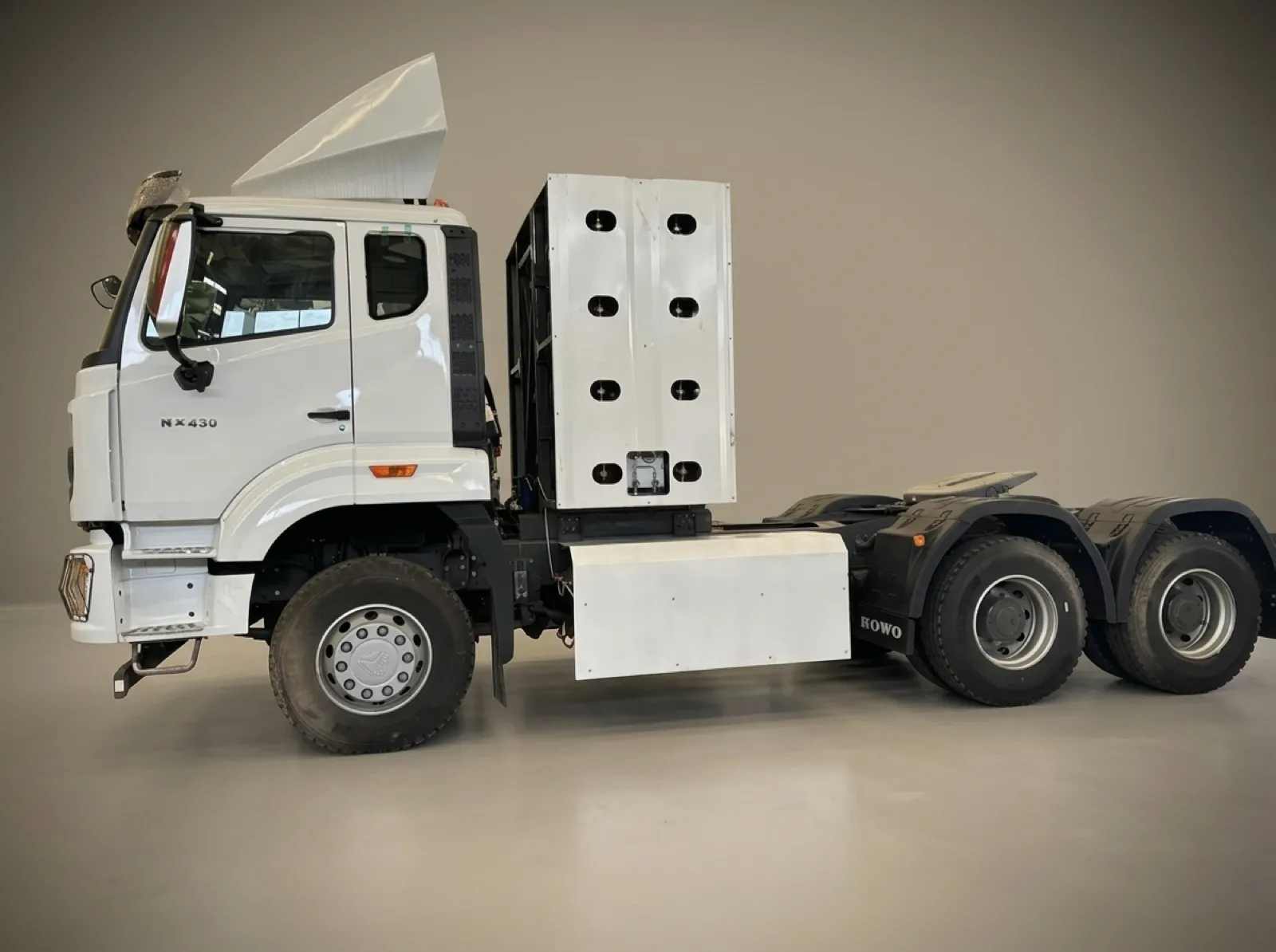

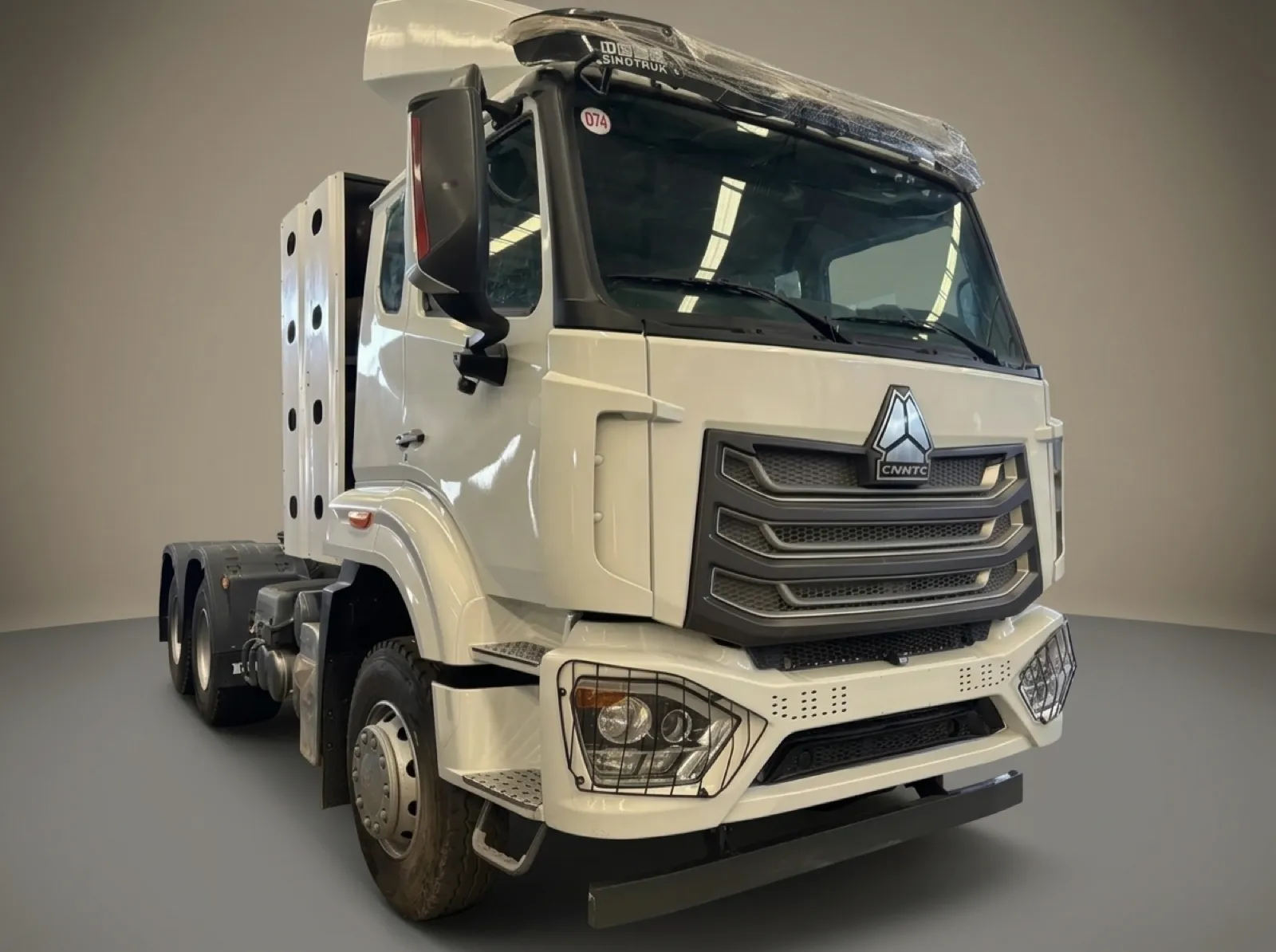

Howo CNG tractor head
- Condition: Brand New
- Tyre Quantity: 10 tyre
- Engine Power:380hp 400hp 430hp
- Driving Type: 6×4
- Capacity: 70tons
We are always ready to face the most severe working conditions.
Thanks to its robust and durable body, HOWO truck has extraordinary performance in construction, mining and other application scenarios.
In the harsh working environment, HOWO is always ready to meet the severe test.
Overview
Unstoppable Productivity
HOWO Tractor Truck is built for long-haul and heavy-duty transport. With powerful performance and a reinforced chassis, it ensures efficiency and reliability in every operation. The spacious, comfortable cabin reduces driver fatigue, while advanced fuel economy keeps costs under control. Whether on highways, at ports, or in mining sites, HOWO Tractor Truck delivers consistent power and durability. Choose HOWO to make your transport safer, smarter, and more profitable.
Parameters
| Vehicle type | Tractor |
|---|---|
| Drive type | 6x4 |
| Cab | HW76 single bunk |
| Engine | CNG Engine |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance |
| Suspension | leaf spring suspension；air spring suspension |
| Transmission | HW19710 |
| Front axle | VGD95 (drums) |
| Rear axle | MCX16ZG double axle (drums) |
| Steering System | Bosch steering gear |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah |
| Tyre | 12.00R20,315/80R22.5,13R22.5 etc. |
| Fuel Tank (L) | 400L Diesel Tank |
| Overall Dimension | 6800×2496×2958(mm) |
| Fifth Wheel | #50, #90 |
| Gross weight | 25000 kg |
| Color | White, red, green, golden and so on |
If you are interested in this Howo Dump Truck welcome to leave your message!
We will provide more details, quotations, catalogs, drawings, and videos for you!
GET NOW!
Recommed Products
improve your business
Let’s discuss how we can help you.
R Trucks reference configuration
The catalogue above includes configuration variants. The tables below are references for comparing offers. Confirm the actual engine, gearbox, axles, dimensions, equipment and steering side in writing, and match the inspection record to the truck supplied.
| Engine | SINOTRUK MT13 CNG · about 430 hp (typical) |
|---|---|
| Drive | 6x4 |
| Gearbox | HW19710 · 10-speed manual |
| Fuel | Compressed natural gas (CNG) |
| Gas storage | Cylinder set sized to your route |
| Engine | SINOTRUK MT13.43 natural-gas engine, about 430 hp |
|---|---|
| Gearbox | SINOTRUK HW19710 manual, 10 forward / 2 reverse |
| Front axle | HF9, 9 t |
| Rear axles | 16 t double drive axles, ratio about 4.8 |
| Tyres | 315/80R22.5 |
| Fifth wheel | 90# (3.5 in) |

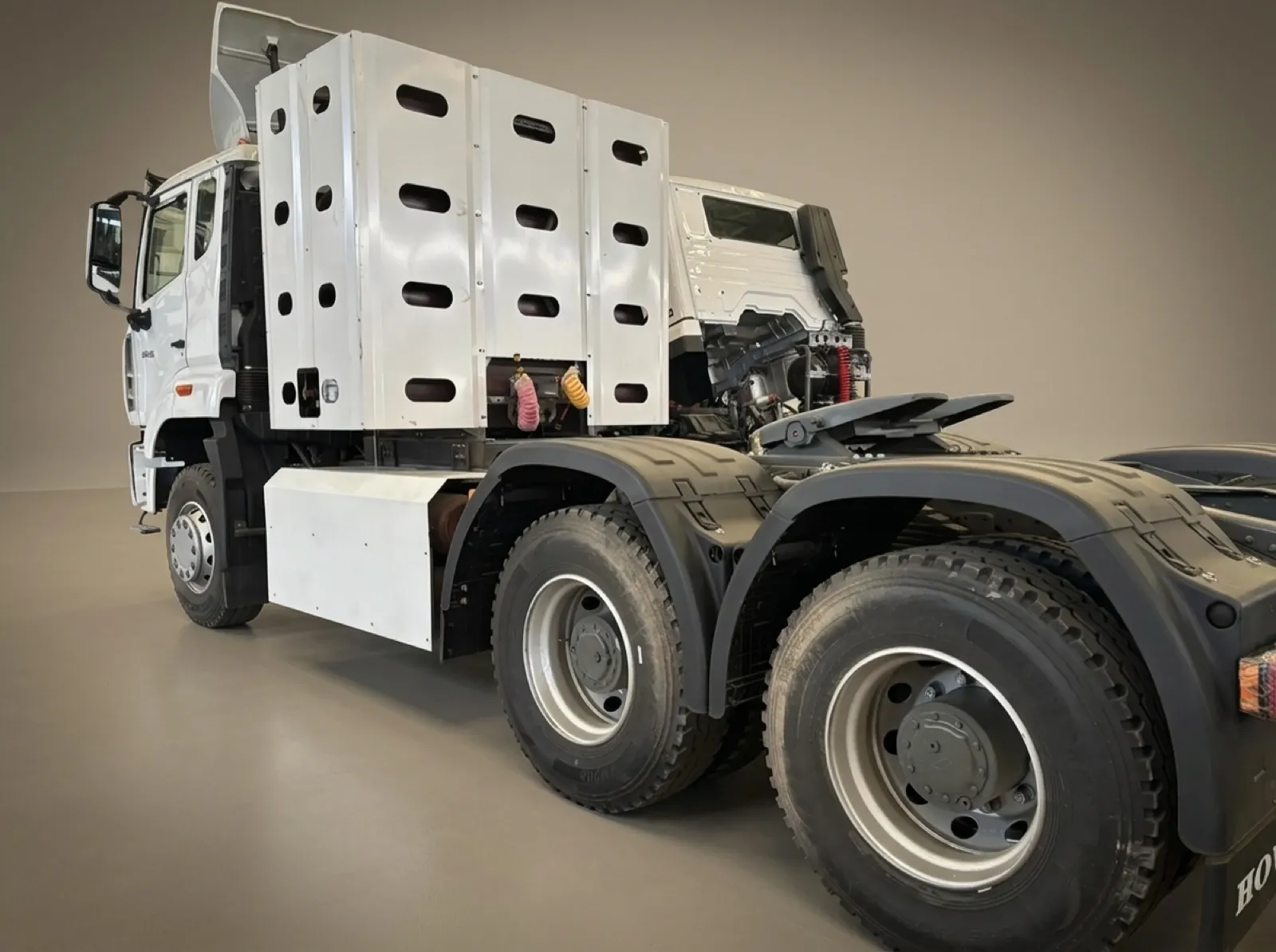

| Gas cylinders | Rear and side cylinder racks; common builds carry about 2,000 L water volume |
| Cab | NX cab with sleeper |
Configuration details and checks
A CNG tractor needs a gas-specific engine, cylinder installation and refuelling plan. Its cylinder water volume is not the same as usable gas volume, driving range or a diesel-tank capacity.
| Powertrain | R Trucks' listed configuration uses the MT13.43 430 hp CNG engine and HW19710 manual gearbox. |
|---|---|
| Gas storage | The approximately 2,000 L figure is cylinder water volume. Confirm cylinder count, working pressure, certification and installation drawing. |
| Trailer connection | The listed 90# fifth wheel requires a compatible trailer kingpin. Check cylinder-cabinet clearance through the full articulation range. |
What to confirm before ordering
- Confirm that the route has suitable CNG stations and compatible filling connections.
- Request cylinder manufacturing dates, inspection documents and local acceptance requirements.
- Obtain a route-specific fuel-use estimate; do not treat cylinder water volume as a range guarantee.
Reference examples describe possible equipment, rather than current stock. The written quotation confirms the engine, chassis, body and included equipment for your order.
