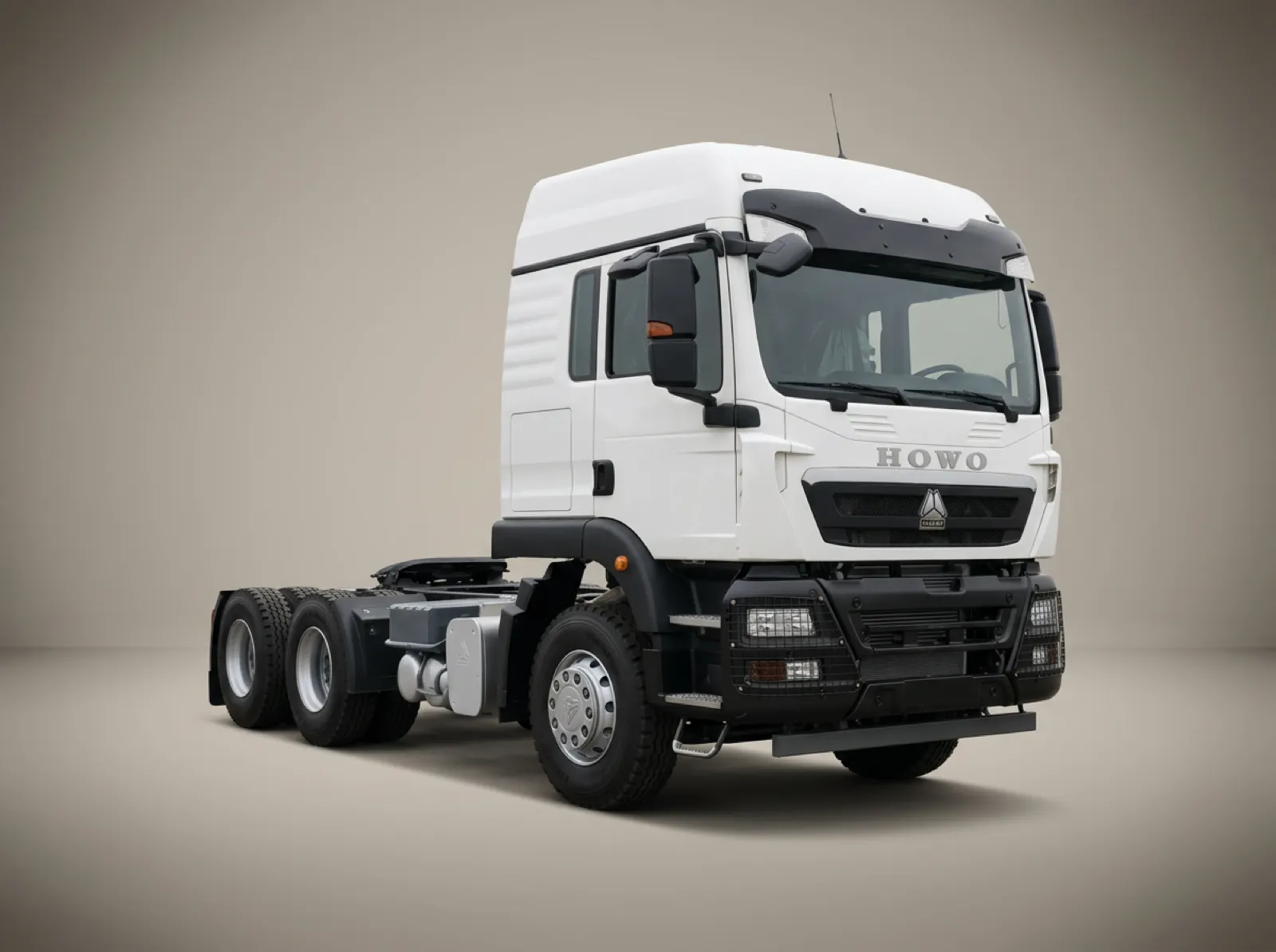

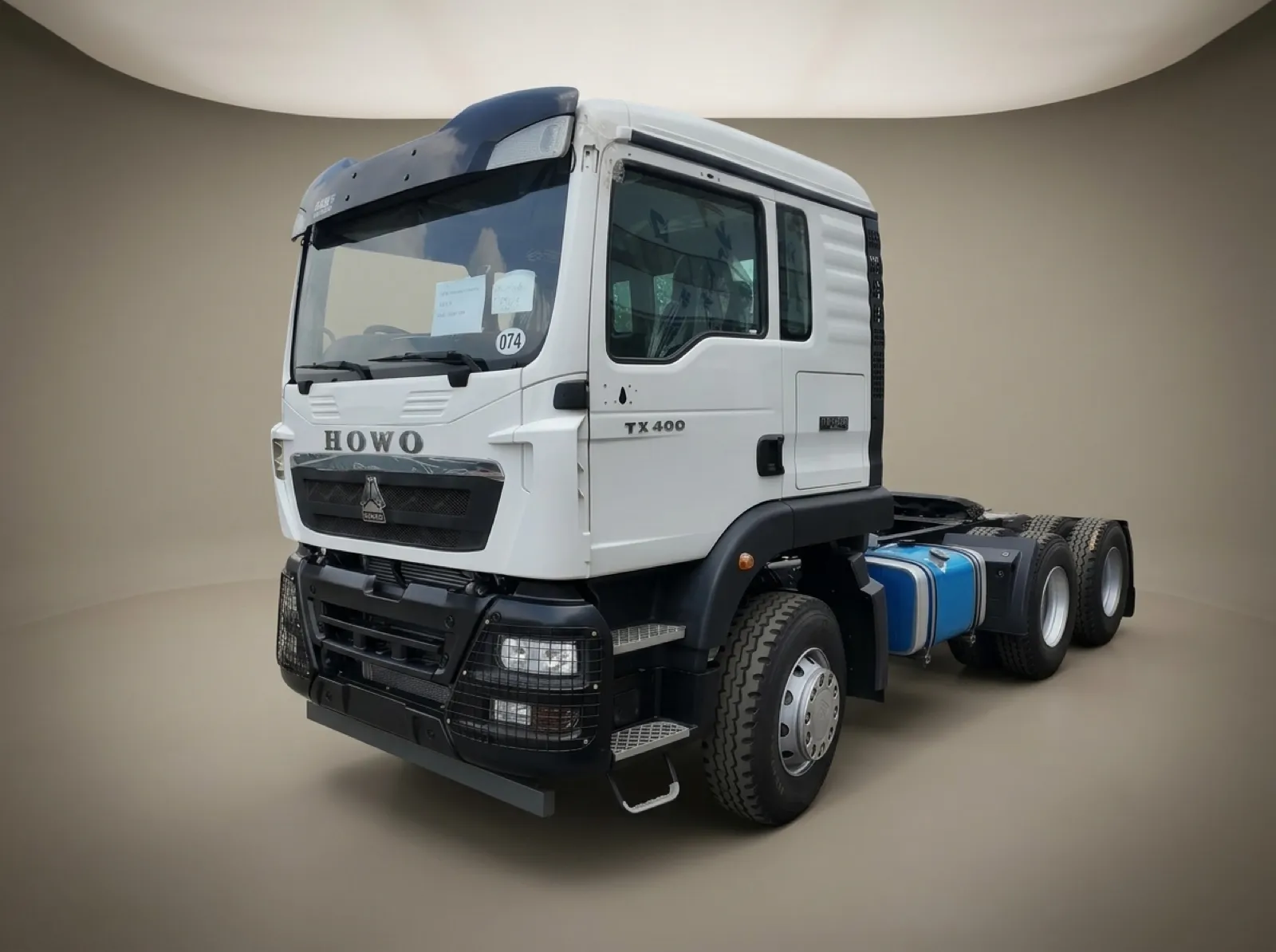

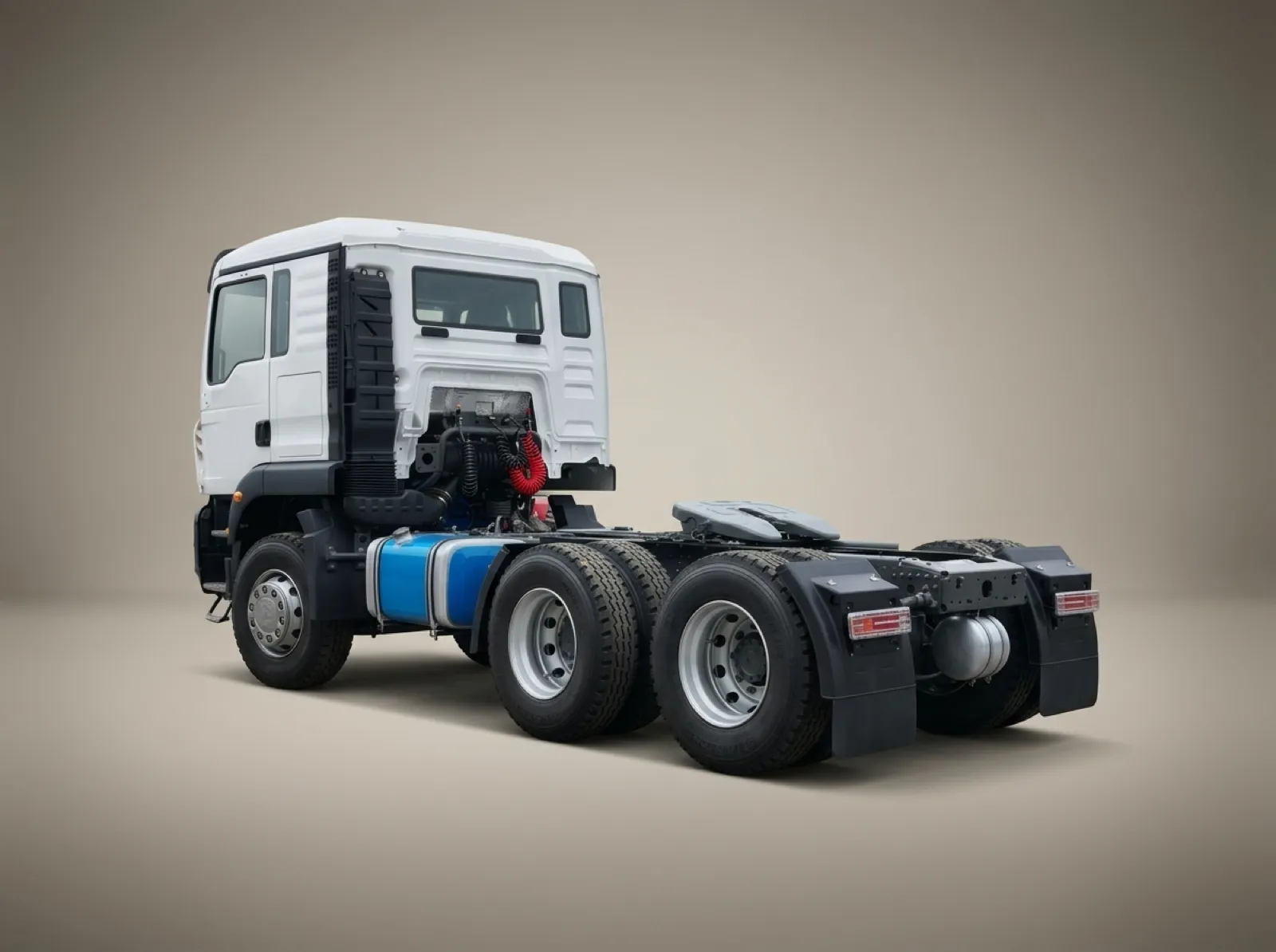

SINOTRUK HOWO TX tractor truck
According to clients’ requirements, we can customize different loading capacity and volume.
Howo TX tractor head
- Condition: Brand New
- Tyre Quantity: 10 tyre
- Engine Power:380hp 400hp 430hp
- Driving Type: 6×4
- Capacity: 70tons
We are always ready to face the most severe working conditions.
Thanks to its robust and durable body, HOWO truck has extraordinary performance in construction, mining and other application scenarios.
In the harsh working environment, HOWO is always ready to meet the severe test.
Overview
Unstoppable Productivity
HOWO Tractor Truck is built for long-haul and heavy-duty transport. With powerful performance and a reinforced chassis, it ensures efficiency and reliability in every operation. The spacious, comfortable cabin reduces driver fatigue, while advanced fuel economy keeps costs under control. Whether on highways, at ports, or in mining sites, HOWO Tractor Truck delivers consistent power and durability. Choose HOWO to make your transport safer, smarter, and more profitable.
Parameters
| Vehicle type | Tractor |
|---|---|
| Drive type | 6x4 |
| Cab | TX-M,TX-F |
| Engine | WP12.400E201 |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance |
| Suspension | leaf spring suspension；air spring suspension |
| Transmission | HW19710 |
| Front axle | VGD95 (drums) |
| Rear axle | MCX16ZG double axle (drums) |
| Steering System | Bosch steering gear |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah |
| Tyre | 12.00R20,315/80R22.5,13R22.5 etc. |
| Fuel Tank (L) | 400L Diesel Tank |
| Overall Dimension | 6800×2496×2958(mm) |
| Fifth Wheel | #50, #90 |
| Gross weight | 25000 kg |
| Color | White, red, green, golden and so on |
If you are interested in this Howo Dump Truck welcome to leave your message!
We will provide more details, quotations, catalogs, drawings, and videos for you!
GET NOW!
Recommed Products
improve your business
Let’s discuss how we can help you.
R Trucks reference configuration
The catalogue above includes configuration variants. The tables below are references for comparing offers. Confirm the actual engine, gearbox, axles, dimensions, equipment and steering side in writing, and match the inspection record to the truck supplied.
| Engine | About 430 hp (MC11 or WP12 by build) |
|---|---|
| Drive | 6x4 |
| Gearbox | Manual, confirmed on quote |
| Rear axles | MCX16ZG · ratio 4.803 (typical) |
| Fuel tank | 600 L (typical) |
| Engine | SINOTRUK MC11.43 or Weichai WP12.430, about 430 hp |
|---|---|
| Gearbox | SINOTRUK manual gearbox; speeds confirmed on quote |
| Front axle | VGD95 |
| Rear axles | MCX16ZG, 16 t × 2, ratio 4.803 |
| Fifth wheel | 90# (3.5 in) |
| Fuel tank | 600 L |
| Tyres | 12R22.5 or 315/80R22.5 |
| Cab | TX cab with sleeper |
Configuration details and checks
HOWO TX trucks are supplied with different engine and chassis combinations. The approximately 430 hp configuration on this page must be identified by its engine model and chassis sheet before an order is agreed.
| Engine identification | Confirm MC11.43 or WP12.430, the emissions version and rated power on the quotation. |
|---|---|
| Driveline | The listed rear axle is MCX16ZG with a 4.803 ratio. Confirm the manual gearbox model and trailer duty together. |
| Coupling and fuel | The page lists a 90# fifth wheel and 600 L diesel tank. Confirm tyre choice and coupling dimensions for the offered chassis. |
What to confirm before ordering
- Request a complete build sheet rather than selecting by TX cab appearance alone.
- Confirm road gradients, trailer type, expected combination weight and daily distance.
- Check destination emissions and braking rules before paying a deposit.
Reference examples describe possible equipment, rather than current stock. The written quotation confirms the engine, chassis, body and included equipment for your order.
