Tipper Truck

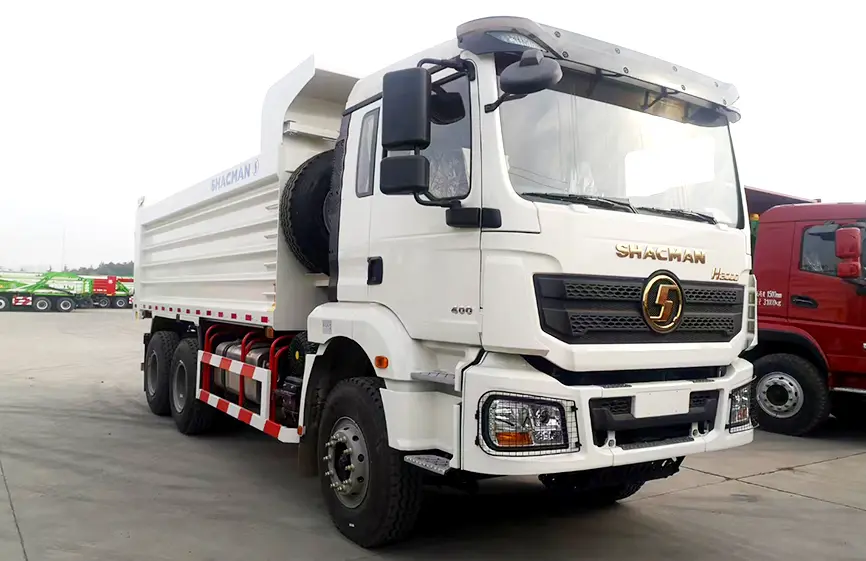

SHACMAN H3000 6×4 400hp Dump Truck

Catalogue reference · 1 / 5

Before you order

Reference specifications

Confirm the engine, drive, steering side, dimensions, load rating and emissions requirements for your destination before ordering.

The source pairs a 400hp engine with a 220kW output field. These figures conflict; confirm the rated engine power before ordering.

SHACMAN H3000 6×4 400hp Dump Truck · source specification table 1
Truck Name	Shacman H3000 6×4 400hp Dump Truck
Transport type	Mining engineering
Logistics type	Ore / sand / gravel / coal
Distance(km)	≤200
Road type	Offroad
Drive	6×4
Max weight(t)	≤50
Max speed	75
Loaded speed(km)	40~60
Vehicle model	SX3255MN324
Engine	WP12.400E201
Emission standard	Euro Ⅱ
Displacement	9.726L
Rated output	220kw
Max.torque	1390N•m
Transmission	10JSD180+QH50
Clutch	430
Frame	850×300(8+7)
Front axle	MAN 9.5T
Rear axle	16T MAN double reduction 5.92
Tire	12.00R20
Front Suspension	Multi leaf springs
Rear Suspension	Multi leaf springs
Fuel	Diesel
Capacity of the fuel tank	400L ( Aluminum shell )
Battery	165Ah
Dimensions(L×W×H)	7950x2490x3270
Wheelbase	3175+1400
Truck(L×W×H)	4800x2300x1300
Approach/Departure angle(°)
Max.gradeability(%)
Type	MAN H3000 , mid-lengthened flat roof
Equipments	◆ Rear window ◆ Automated air conditioning ◆ Hydraulic suspension of cab ◆ Hydraulic driver seat with seatbelts ◆ One sleeping bed ◆ Hydraulic reversal ◆ Radio with MP3 player
Optional	●Full vehicle WABCO valve
