Tractor Truck

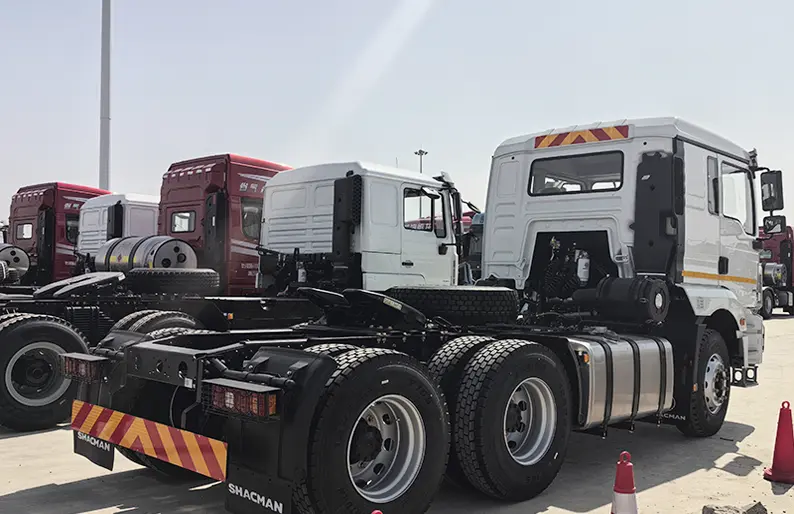

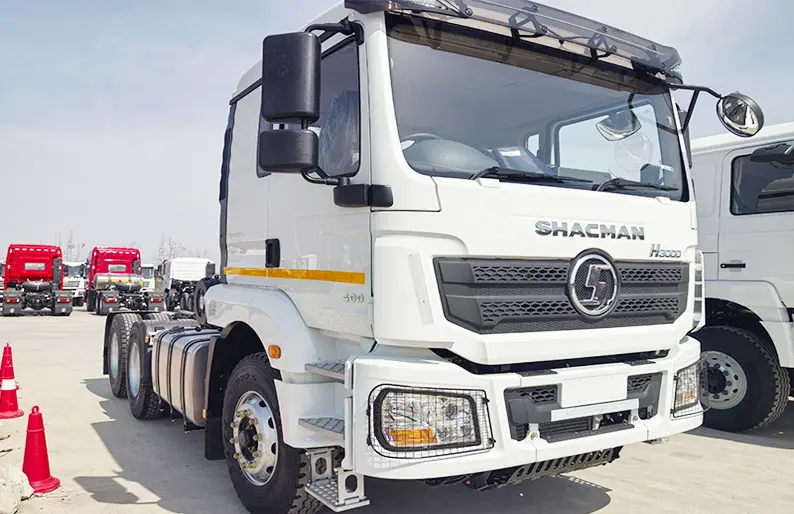

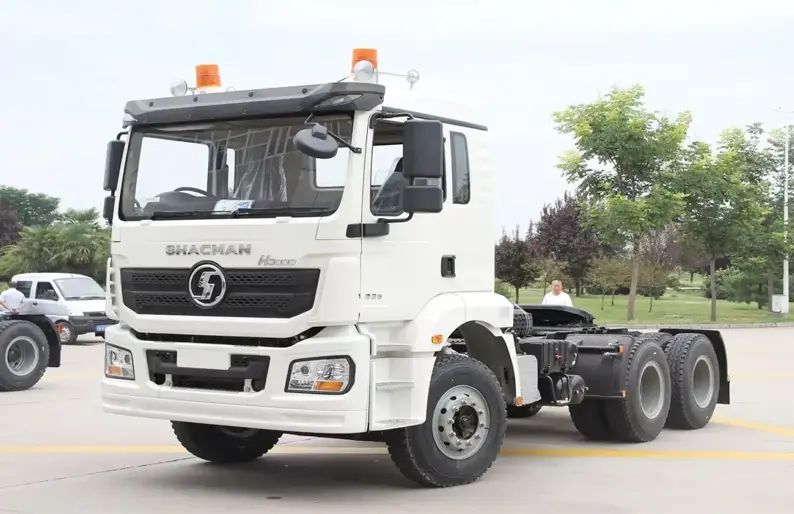

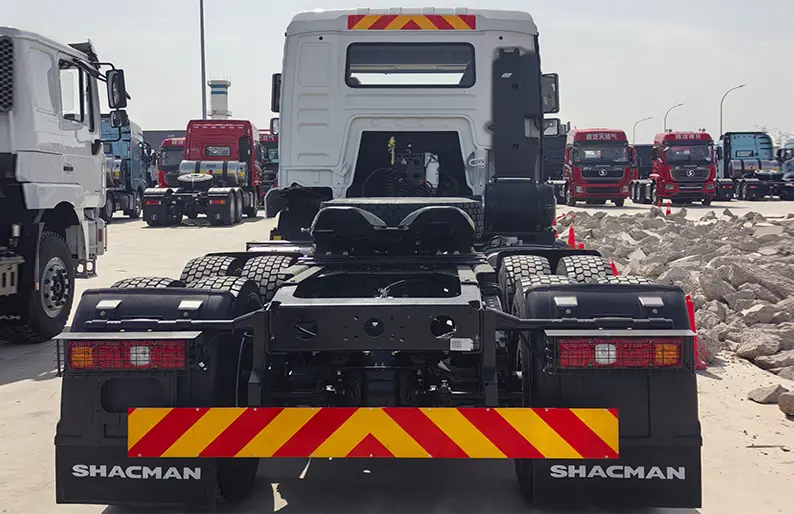

SHACMAN H3000 6X4 Tractor Truck

Catalogue reference · 1 / 5

Before you order

Reference specifications

Confirm the engine, drive, steering side, dimensions, load rating and emissions requirements for your destination before ordering.

SHACMAN H3000 6X4 Tractor Truck · source specification table 1
Transport type		Shacman H3000 6X4 Tractor Truck
Logistics type		Food, fruit, wood, household appliances and other department stores
Drive		6X4	6X4			6X4
Max Weight(t)		≤70	≤55			≤90
Max Speed		110	95			95
Loaded speed(km/h)		50~70	50~75			40~60
Vehicle model		SX4255HT324	SX4255HT324C			SX4255HU324
Engine		WP10.380E22	ISM385			WP12.400E201
Emission standard		Euro II	Euro III			Euro II
Displacement		9.726L	10.8L			11.596L
Rated Output		280KW	283KW			294KW
Max. torque		1460N.m	1835N.m			1920N.m
Transmission		12JSD200T-B	12JSD200T-B			12JSD200T-B
Clutch		430	430			430
Frame		850X270 (8+4)		850X270 (8+4)		850X300 (8+5)
Front axle		MAN 7.5T		MAN 7.5T	MAN 7.5T
Rear axle		13T STR3.866		13T STR3.866	13T STR4.266
Tire		12.00R20		12.00R22.5	12.00R20
Front Suspension		Little leaf springs
Rear Suspension		Little leaf springs
Battery		165Ah		180Ah	165Ah
Fuel		Diesel
Capacity of the fuel tank		400L		400L	600L
Dimensions		6860X2490X3710
Wheelbase		3175+1350		3175+1350	3175+1400
The fifth wheel		90 type(lightweight)
Approach/departure angle		22/66
Max grad ability		20
Cab	Type	MAN H3000,Lengthened Flat Roof
	Equipment	♦ Rear window♦ Sun roof♦ Four point air suspension♦ Air cushioned drivers seat♦ radio with Mp3 player♦ Automated air conditioning
	Optional	♦ Central locking♦ Full vehicle WABCO valve
