Tractor Truck

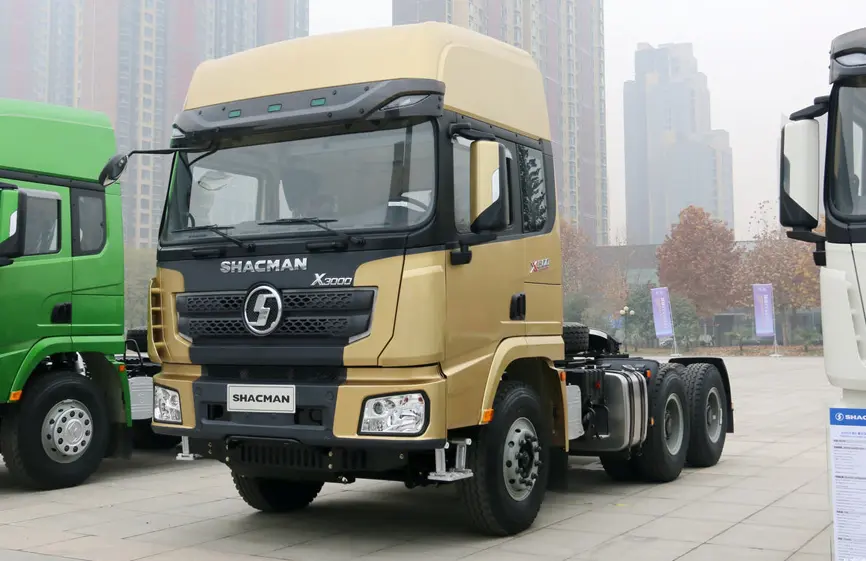

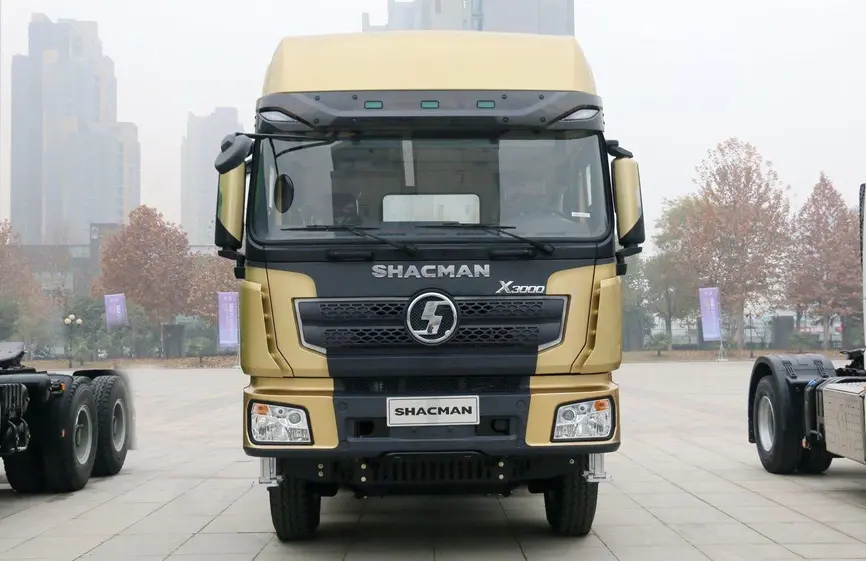

SHACMAN X3000 6×4 Tractor Truck

Catalogue reference · 1 / 4

Before you order

Reference specifications

Confirm the engine, drive, steering side, dimensions, load rating and emissions requirements for your destination before ordering.

Details to confirm

The source summary says Euro 5 while the detailed table says EURO II. Confirm the required emission standard and offered engine before ordering.

SHACMAN X3000 6×4 Tractor Truck · source specification table 1
MODEL		SX42555V344
Driver position		Left Hand
Driving type		6*4
Wheelbase/(mm)		4375+1400
Max. Speed/(km/h)		90km/h
Engine	Brand	WEICHAI
	Model	WP12.430E201
	Emission Standard	EURO II
	Rated output power/（PS）	316KW/430HP
	Displacement(L)	11.596L
Transmission	Brand	FAST
	Model	12JSDX240K
Front axle	Brand	HANDE
	Model	MAN 9.5T
Rear axle	Brand	/HANDE
	Model	16T MAN double reduction driving axle Speed ratio: 5.262
Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		850*300(8+7)
Suspension		Front and rear multi-leaf spring Two main flims+two horse riding
Fuel tank/		460L+260L Aluminum alloy
Wheels and tires		12.00R20 （9.0）
Brakes		Running brake:Dual circuit compressed air brake
		Parking brake:Air discharging with spring control
		Auxiliary brake:Engine exhaust brake
Cabin		X3000 extended flat top cab with roof deflector, air master seat, four point air suspension cab,electric heated rearview mirror, electrically controlled automatic temperature control air conditioning,electric window rocking machine, electric flipping, metal bumper with light protection net, three-level boarding pedal, central locking (dual remote control), multifunctional steering wheel, oil bath air filter (with upper and lower protection), ordinary exhaust, rear axle stabilizer bar, reinforced 90 # saddle,tail light protection grille 180Ah low-temperature maintenance free battery, SHACMAN Telematics (with screen but without terminal), cab with sunroof and rear window, reserved air blower interface in the cab, independent water and air heating, upper armrest, SHACMAN logo, all English logo, chrome plated Malii logo on both sides of the doors, radiator oil pan protection plate, enlarged operating platform (VI), quick plug trailer air pipe joint, flat connection plate, simple spare tire rack, 2KG fire extinguisher Inverter power supply, telescopic shaft control, metal mudguard, low-temperature pipe harness, non electrified heating oil sensor, cancellation of fuel anti-theft alarm function.
