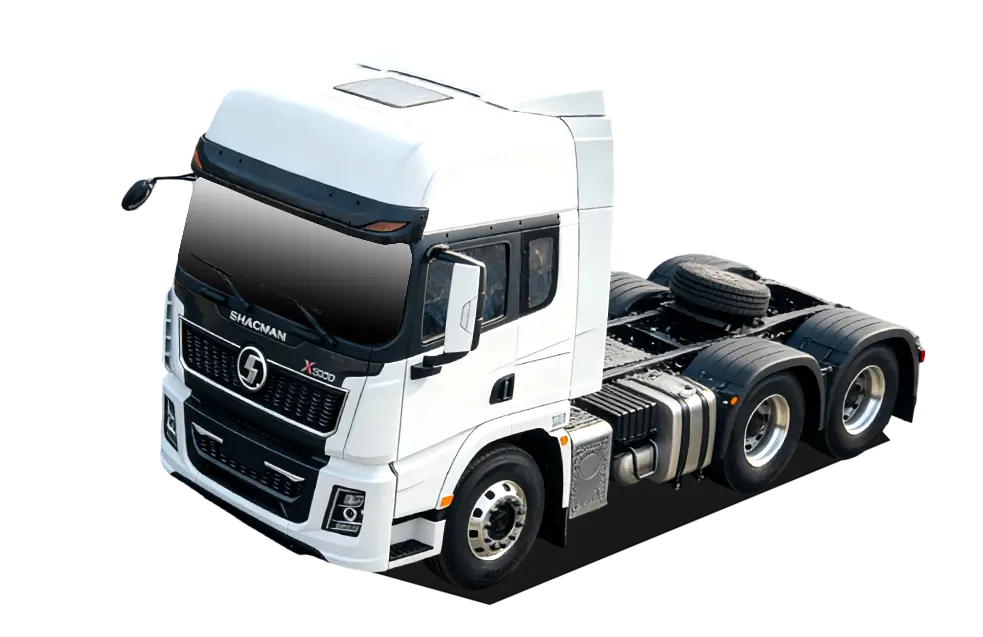

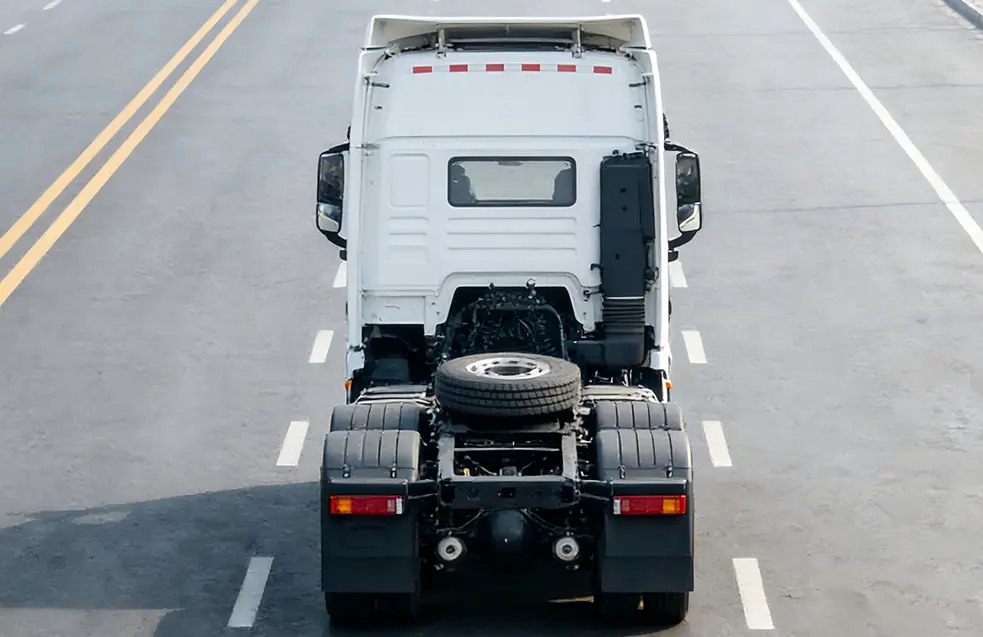

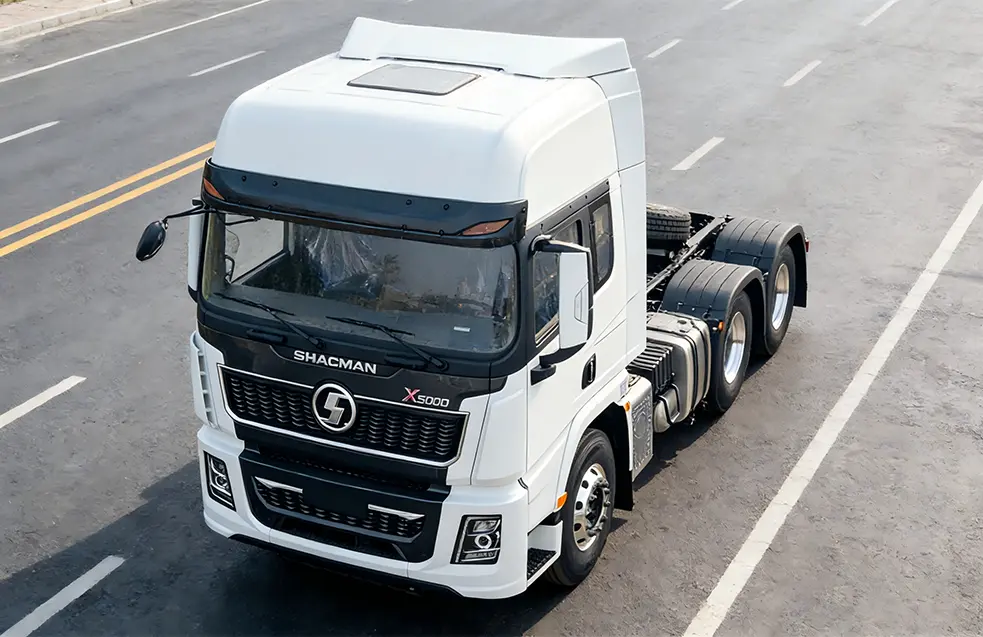

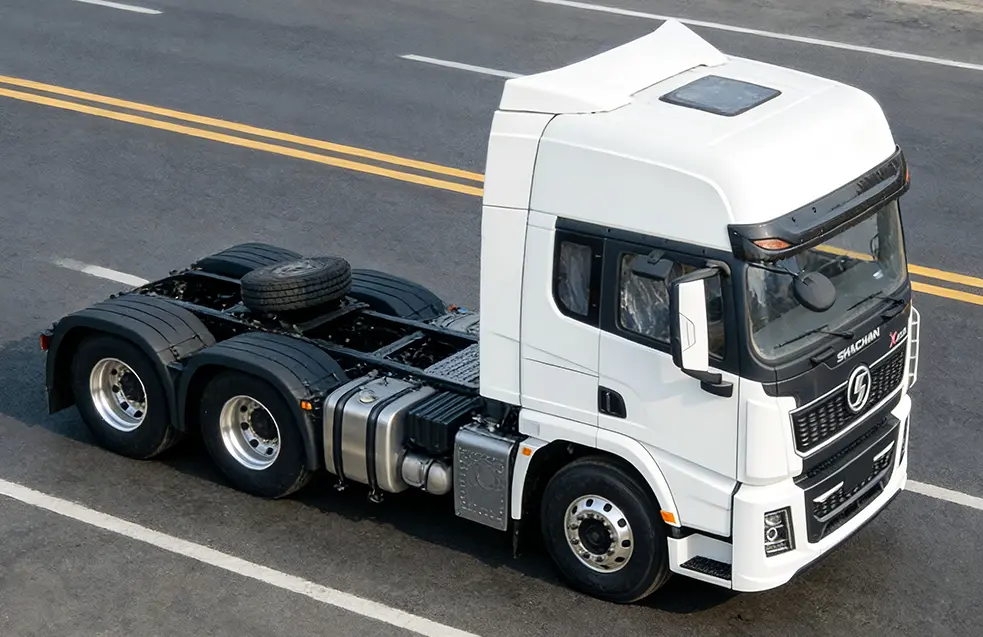

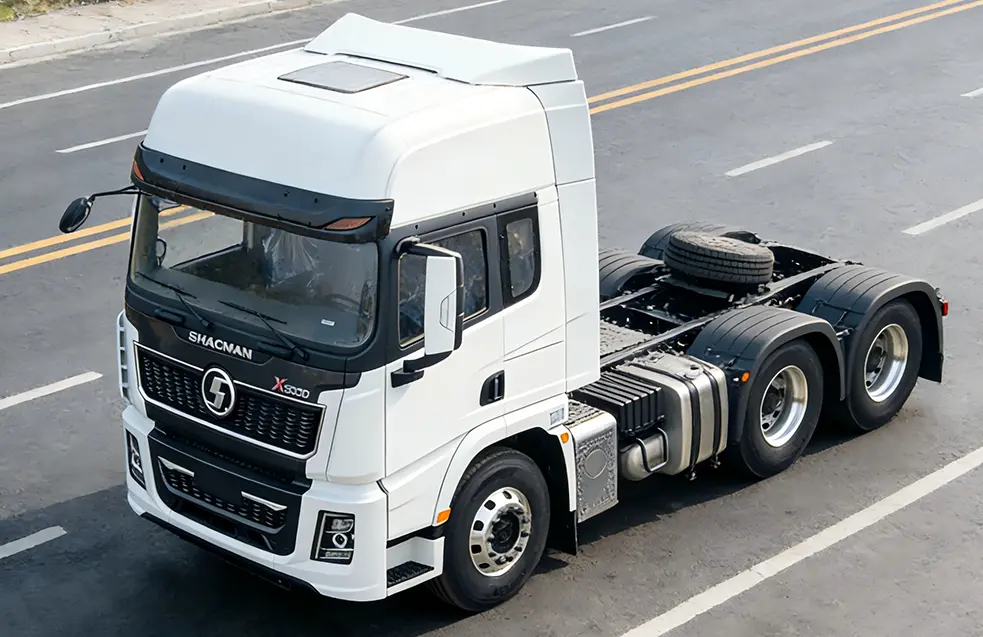

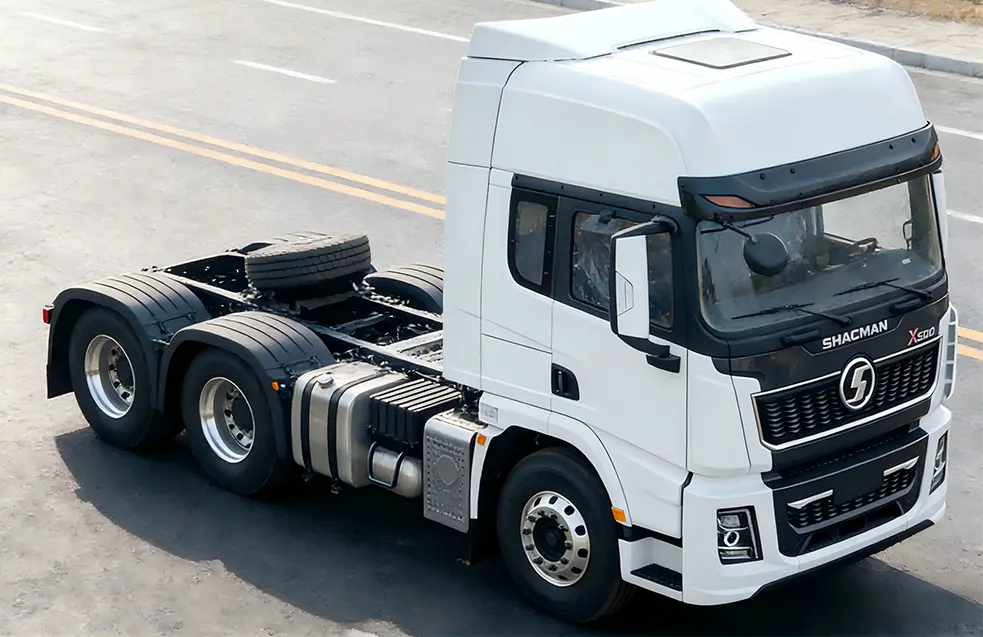

SHACMAN X5000 Tractor Truck
Enlarge photo ↗Catalogue reference · 1 / 6
Before you order
Reference specifications
Confirm the engine, drive, steering side, dimensions, load rating and emissions requirements for your destination before ordering.
Details to confirm
- The source emission field says “Original Power Plant”, which is not an emission standard. Confirm the offered emission standard before ordering.
| SHACMAN X5000 TRACTOR TRUCK (SUPER VERSION) | |
| Model Number | SX425554384C |
| Engine | M13 560 |
| Power (PS) | 560 |
| Emissions | Original Power Plant |
| Transmission | SF16JZ260A – Aluminum Shell – FHB400 Hydraulic Retarder – Forced Cooling |
| Axle Ratio | 16THD double-stage cast bridge – 4.266 |
| Chassis (mm) | (970-850)×300 (8+7) |
| Wheelbase (mm) | 3775+1400 |
| Rear Overhang (mm) | 725 |
| Cab | Extended flat top |
| Front Axle | HD9.5T front axle |
| Suspension | Front and rear multi-leaf springs (four U-bolts) |
| Fuel Tank | (600L+400L)Aluminum alloy fuel tank |
| Tires | 12R22.5 Mixed Pattern |
| Gross Vehicle Weight (t) | ≤70 |
| Economic speed/Maximum speed (km/h) | 45～65/85 |
| Basic configuration | X5000 extended flat-top cab without roof fairing, air-operated driver’s seat, power and heated rearview mirrors, electronically controlled automatic climate control, power windows, power tilt-and-turn mechanism, black engineering bumper with light guards, three-stage entry steps, central locking (with remote control), single-unit oil bath air filter, standard exhaust, domestically produced steering gear, imported WABCO four-channel ABS, front stabilizer bar, multi-function steering wheel, reinforced 90mm saddle, lightweight three-section integrated mudguards, oil pan protection grille, taillight protection grille, 180Ah maintenance-free battery. |
| One country, one booklet | Four-point air suspension, cab with rear window, adjustable seat, silver lettering and emblem, chrome horsepower badges on both doors, SHACMAN logo, all Portuguese lettering, visible long-lasting coarse filter, aluminum alloy air tank, reversing buzzer, battery box anti-theft system, systematic fuel anti-theft system, aluminum alloy operating platform, 2KG fire extinguisher, economy version onboard tool kit, 50T jack, flatbed mounting plate. |
Photo and specification reference: view the source listing. Catalogue checked 28 October 2026.
