Tractor Truck

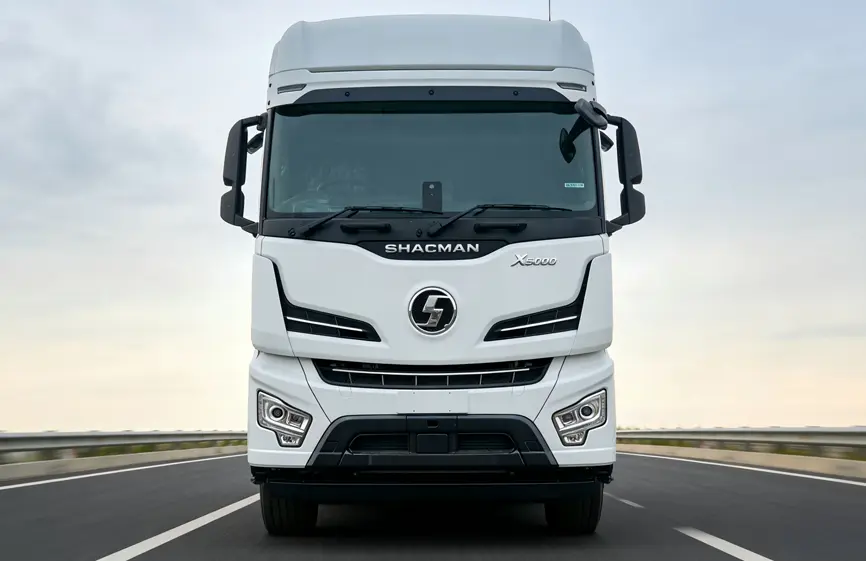

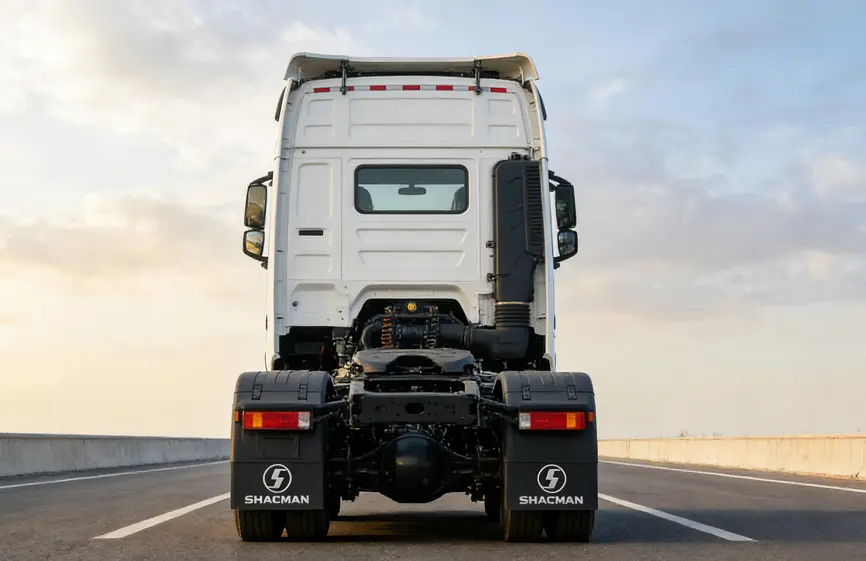

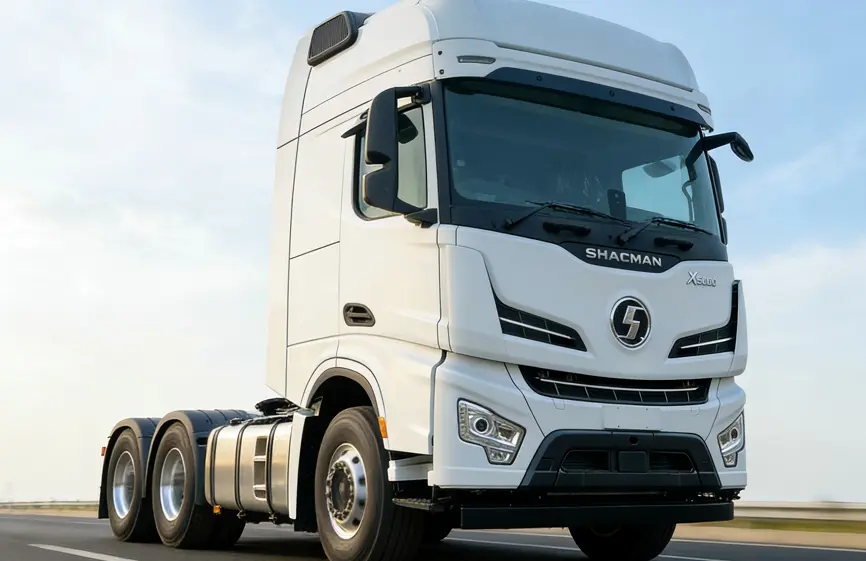

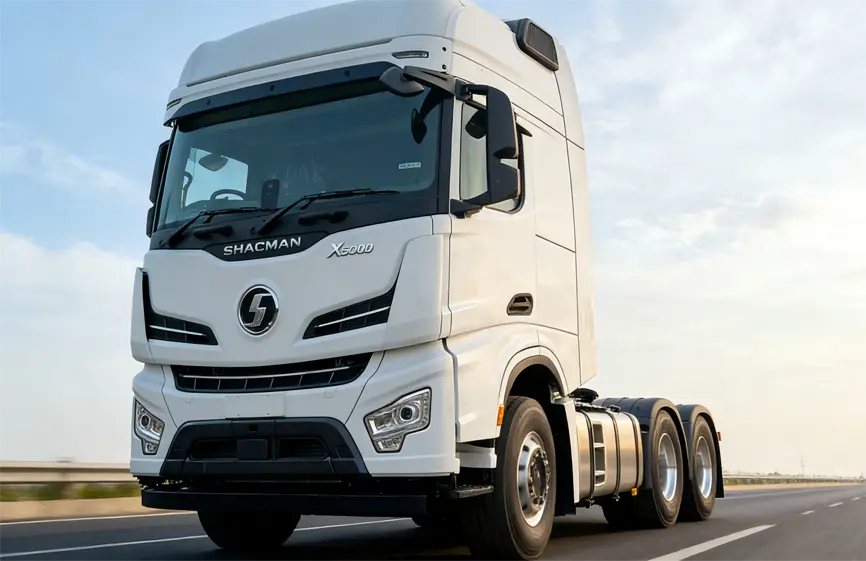

SHACMAN X6000 560hp Tractor Truck

Catalogue reference · 1 / 5

Before you order

Reference specifications

Confirm the engine, drive, steering side, dimensions, load rating and emissions requirements for your destination before ordering.

SHACMAN X6000 560hp Tractor Truck · source specification table 1
Shacman X6000 560hp Tractor Truck Optional configuration
Model	X6000
Drive form	6×4
Truck Version:	Lightweight
Design vehicle model	SX4255Y4324CR
Engine	Model	M13 560
	Horsepower (PS)	560
	Emissions	Original row
transmission	SF16JZ260 – Aluminum Casing – QHG50C Spline – FHB400
Axle ratio	13T HD Single-Stage Reduction Axle – 2.846
Frame (mm)	(970-850)×270(single 8)
Wheelbase (mm)	3200+1350
Rear overhang of the frame (mm)	800
Driver’s cab	Extended high roof
Front axle	HD 7.3T Maintenance-Free Front Axle
Suspension	Front and rear, with fewer leaf springs (2 in front, 3 in rear).
Tank	730L+300L aluminum alloy
Tires	Front tires: 385/65R22.5; Rear tires and spare tire: 315/80R22.55 (front longitudinal, rear segment); spare tire same as rear tires.
Basic configuration	X6000 extended high-roof cab, top and side fairings, ventilated and heated driver’s seat, power and heated side mirrors, electronically controlled automatic climate control, power windows, power tilt-and-turn windows, highway-grade bumper, three-stage entry steps, central locking (with remote control), multi-function steering wheel, standard center-mounted air filter, right-side exhaust, radiator grille, imported right-hand drive steering gear, Jost domestically produced C-type cast 50mm saddle, integrated mudguards, 220Ah maintenance-free battery, WABCO six-channel EBS+ESC.
One country, one book configuration	Four-point air suspension, SHACMAN logo, all-English signage, no rear window, dual-side toolboxes, aluminum alloy air tank, 1320±30mm ground clearance, adjustable saddle, electric sunroof, reversing buzzer, fuel tank cap anti-theft, simple spare tire carrier, LED headlights, upright battery box with steps, fully enclosed operating platform, visual long-lasting coarse filter, transmission with forced cooling, aluminum alloy wheels, stainless steel wheel rim covers, door sunshades, sunshades without decorative lights, only white marker lights, front underrun protection, EPB electronic parking brake (including trailer brake control), trailer rear work light, fenders with splash guards, silver lettering and silver emblem, removal of herringbone reflector on rear beam, removal of front lower side mirror, 10-inch display screen. Features include: full LCD instrument panel, tire pressure monitoring, reserved 1MPa tire inflation interface, reserved 24V power interface in the overhead compartment, leather steering wheel, automatic headlights, 1200W inverter power supply, illuminated logo, welcome lights, 38L onboard refrigerator, keyless start and entry, lighting in the overhead compartment and sleeper berth, reserved air gun and interface, protective caps on rear wheel nuts, lights, glass, seat belts, tires, splash guards, rearview mirrors, saddle with E logo, SHACMAN Telematics terminal, corrugated mounting plate, deluxe toolbox, 50T jack, and 8kg fire extinguisher.
