R Trucks / Configuration overview

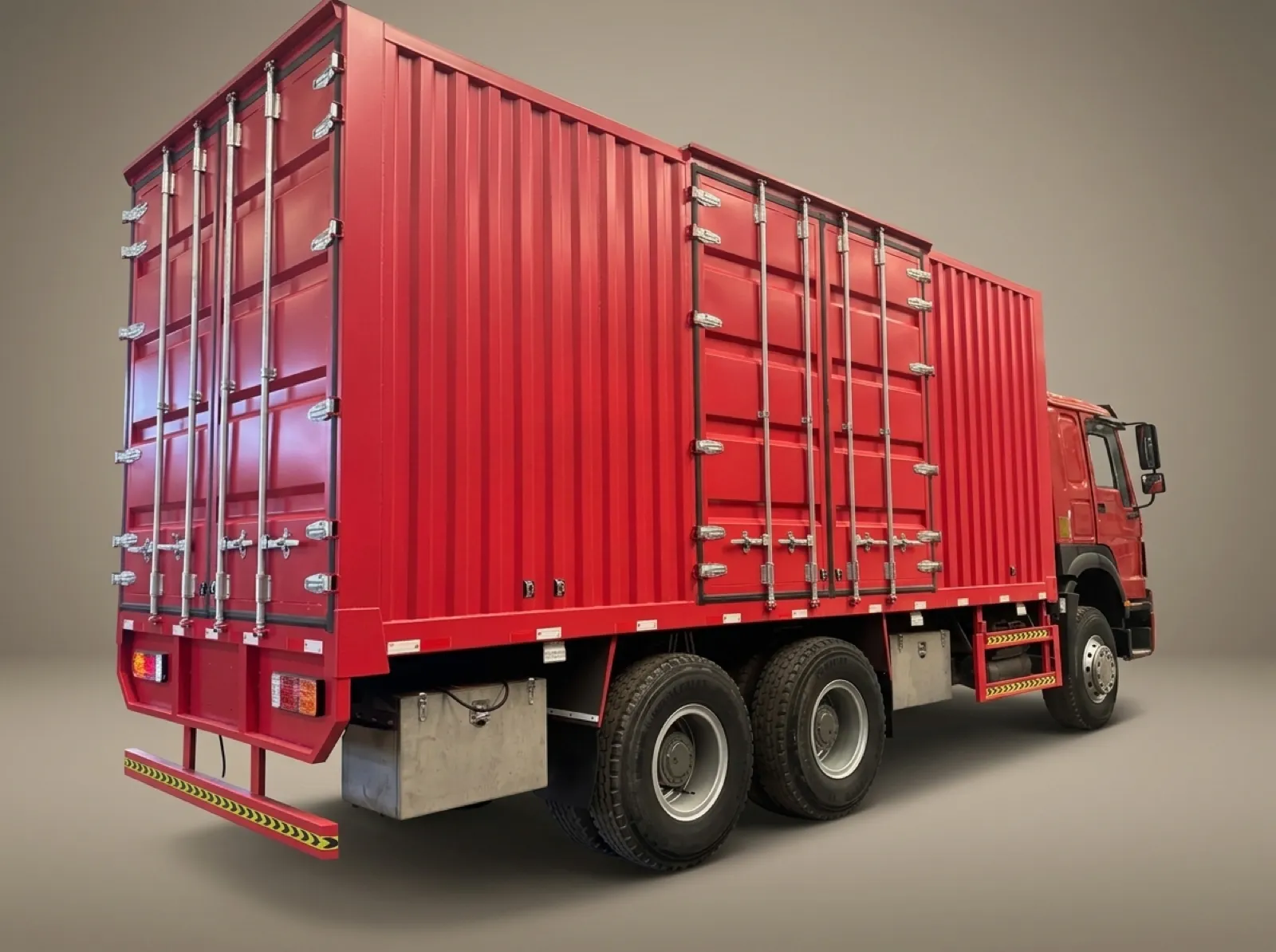

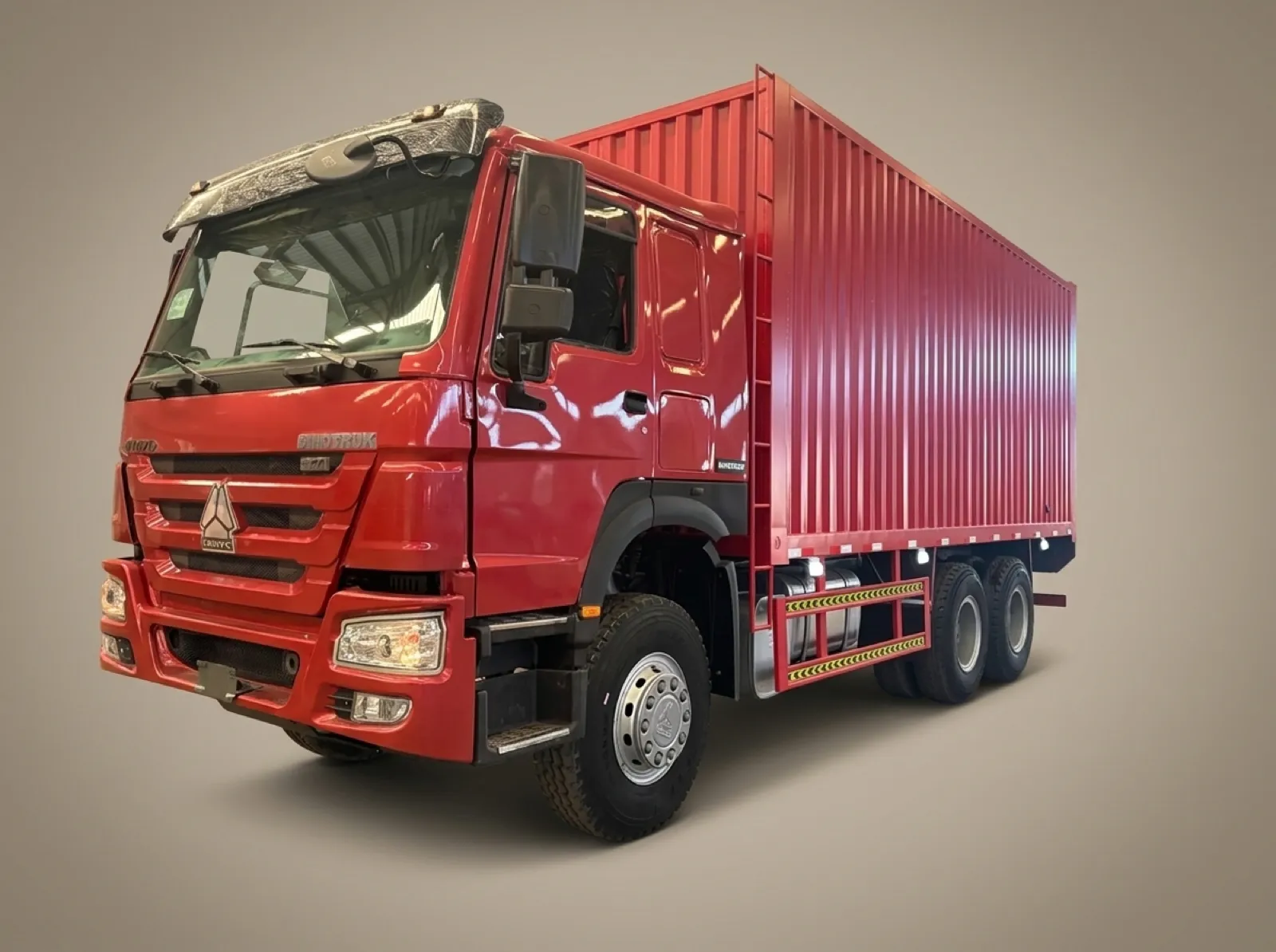

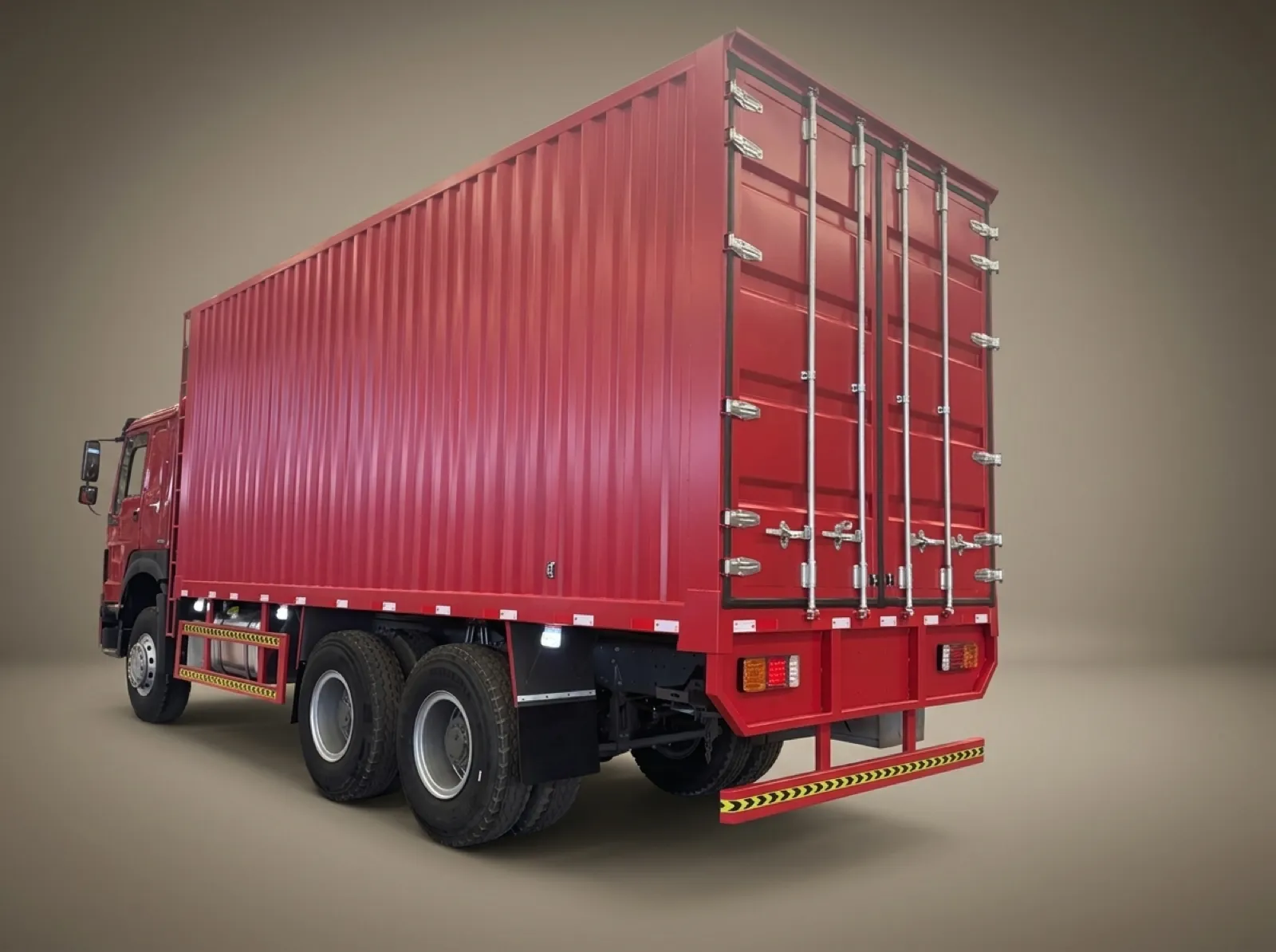

HOWO Van cargo truck
According to clients’ requirements, we can customize different loading capacity and volume.
WHAT WE OFFER
Howo Van cargo truck
- Condition: Brand New
- Tyre Quantity: 10 tyre
- Engine Power:380hp, 400hp
- Driving Type: 6×4
- Loading capacity: 25000kg
- WhatsApp: +86 159 6303 2117
- E-mail: sales@ruiditemachinery.com
We are always ready to face the most severe working conditions.
Thanks to its robust and durable body, HOWO truck has extraordinary performance in construction, mining and other application scenarios.
In the harsh working environment, HOWO is always ready to meet the severe test.
| Vehicle type | Cargo |
|---|---|
| Drive type | 6x4 |
| Cab | HW76 with AC One sleeper |
| Engine | WEICHAI WP10.380-E22, 380hp, Euro 2 |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance |
| Transmission | HW19710, 10F /2R |
| Front axle | VGD95, 9.5 Ton Drum brake |
| Rear axle | MCX16ZG |
| Steering System | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah |
| Tyre | 12.00R20,315/80R22.5,13R22.5 etc. |
| Fuel Tank (L) | 300L Diesel Tank |
| Overall Dimension | 9600*2550*3200mm |
| Max. Speed (km/h) | 85 |
| Steel thickness of Carriage(mm) | Floor:3mm/ Side: 1.5mm, Q235 plate |
| The carriage Size | 7000x2300x800mm |
Hot Selling Model Of Howo Dump Truck
Hot Selling Model Of Howo Dump Truck
improve your business
Let’s discuss how we can help you.
GET QUOTE
R Trucks reference configuration
The catalogue above includes configuration variants. The tables below are references for comparing offers. Confirm the actual engine, gearbox, axles, dimensions, equipment and steering side in writing, and match the inspection record to the truck supplied.
| Engine | SINOTRUK WD615.47 · 371 hp |
|---|---|
| Drive | 6x4 |
| Gearbox | HW19710 · 10-speed manual |
| Cargo body | 10,200 × 2,500 × 2,500 mm |
| Body steel | Floor 5 mm · sides 3 mm |
| Driver position | Left- or right-hand drive |
|---|---|
| Engine | SINOTRUK WD615.47, 6-cylinder in-line diesel, 9.726 L, 371 hp, Euro II, oil-bath air filter |
| Gearbox | SINOTRUK HW19710 manual, 10 forward / 2 reverse |
| Clutch | Ø430 mm diaphragm |
| Front axle | SINOTRUK HF9 |
| Rear axles | SINOTRUK HC13 double reduction, ratio 4.7 |
| Steering | ZF-technology power steering |
| Frame | Double frame, 940–850 × 300 mm, 8 + 8 mm |
| Suspension | Leaf springs, 12 front / 14 rear |
| Fuel tank | 300 L aluminium alloy |
| Tyres | 12R22.5 tubeless |
| Brakes | Dual-circuit air service brake · spring parking brake · engine exhaust brake |
| Cargo body | 10,200 × 2,500 × 2,500 mm, manganese steel, floor 5 mm, sides 3 mm |
| Max. speed | 100 km/h |
Configuration details and checks
An enclosed box body protects general cargo from weather and differs from an open dropside or stake body. Use the internal load-space dimensions and door opening to check whether your goods will fit.
| Listed body | R Trucks' reference body is 10,200 × 2,500 × 2,500 mm, with a 5 mm floor and 3 mm sides. Confirm whether quoted dimensions are internal or external. |
|---|---|

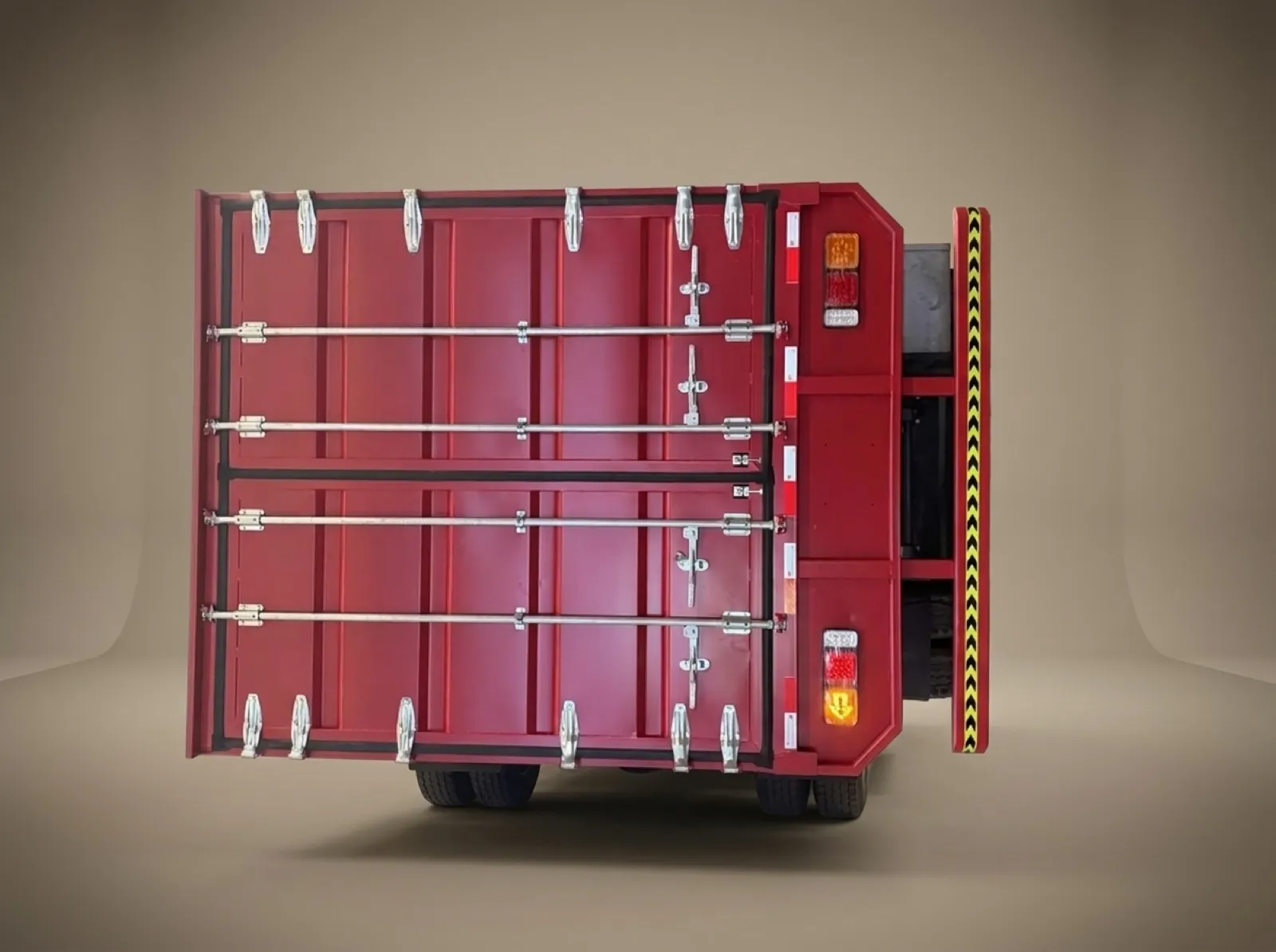

| Loading arrangement | Specify rear and side doors, pallet dimensions, loading method and floor point loads. Refrigeration is separate equipment and is not implied by an enclosed body image. |
| Chassis | The listed build uses WD615.47 371 hp, HW19710 and HC13 rear axles with a 4.7 ratio. |
What to confirm before ordering
- Provide cargo dimensions, density and the maximum individual load placed on the floor.
- Check door clear openings, floor height and loading-dock compatibility.
- Confirm body mounting, weather seals, securing points and legal axle loads.
Reference examples describe possible equipment, rather than current stock. The written quotation confirms the engine, chassis, body and included equipment for your order.
